AIRJET^TM DC 3V 6V 12V 24V Optional Long Lifetime Brushless Mini Diaphragm Water Pump




AIRJET^TM Brushless DC Water Pump 00H220H022 use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive, it has the design ability to work for chemical liquid or chemical gas continuously operating day and night.

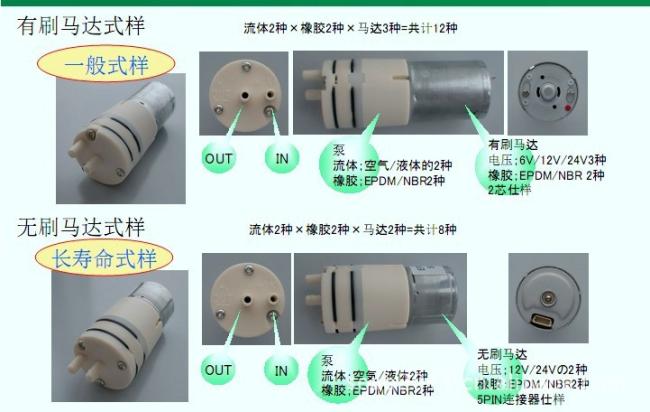

Brushless DC Water Pump
1.Brushless motor, super long lifetime, super quiet
2. More than 320+_50mL/m for water flowrate, can work with water or wine or oil or ozonized water flowrate or Ammonia gas or liquid. Water suctionable height 2m.
3.Speed adjustable and controllable with square wave signal
4. Corrosive resistance advanced pump film, can carry chemical liquid.
5. lifetime more than 8000hours continuously working day and night
6. size is ∮27x59.7mm
7. Outlet & Inlet Dia: 4mm
8. weight: 60g

Features

> Compact size
> Steady air outputs with low noise
> Low power consumption
> Economical
> Very low vibration


Scope

oil paint machine
syringe pump
ink machine
aquarium
Household appliance
Dosing chemical material
Battery driving pump
Wine pump
oil pump
ammonia pump
chemical liquid pump
chemical air/liquid pump
ozone pump
fragrance diffuser pump
vacuum pump for suck liquid or air


Competitive Advantage:

long lifetime, low noise, high quality, 320±80mL/m for liquid flowrate and 60-90kpa pressure, with chemical resistance pump film, can carry any chemical liquid, RPM speed adjustable and controllable, energy saving suitable for battery driving, Brushless DC Water Pump

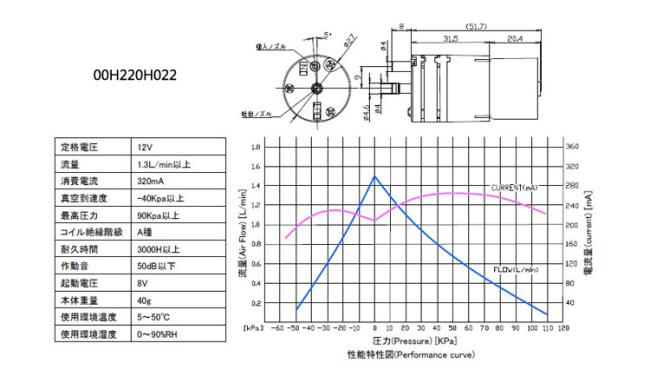

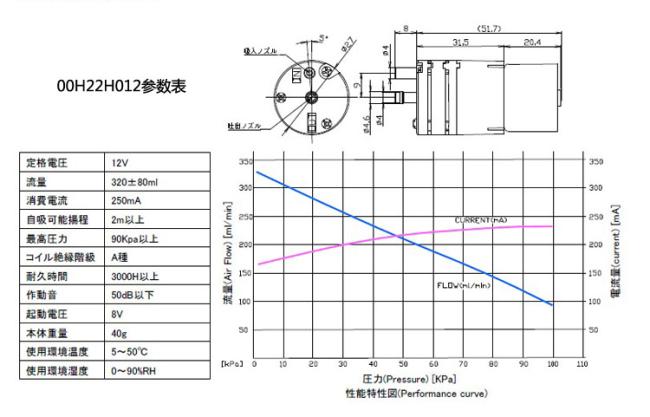

Performance Curve

 for water



for air

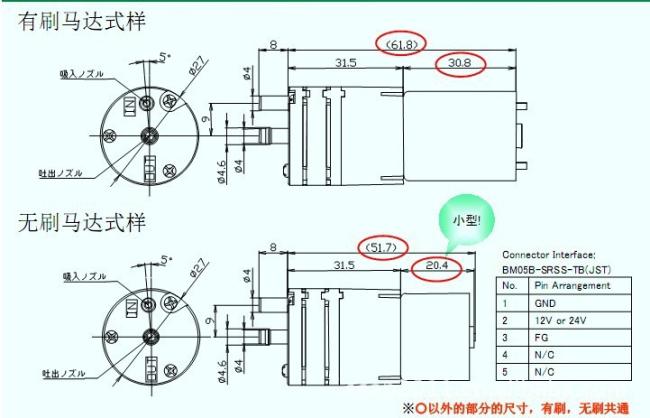

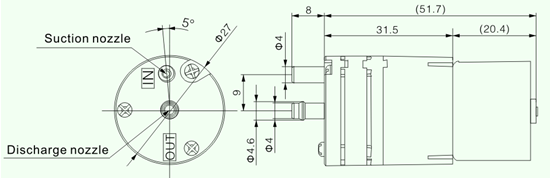

Size

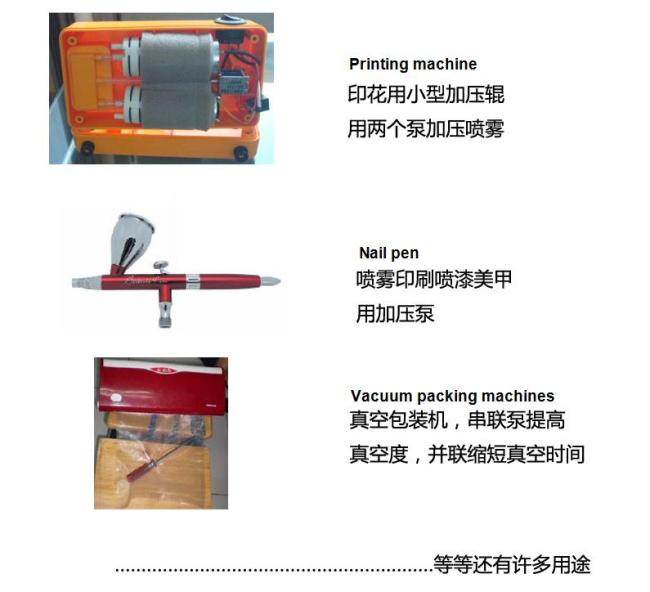

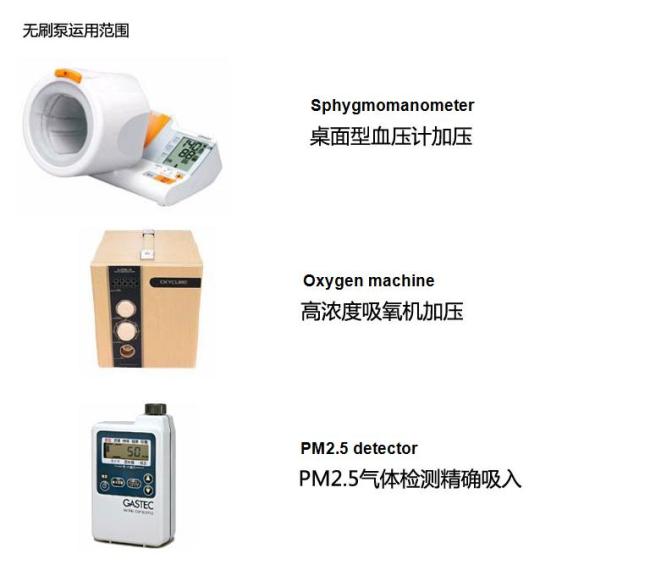

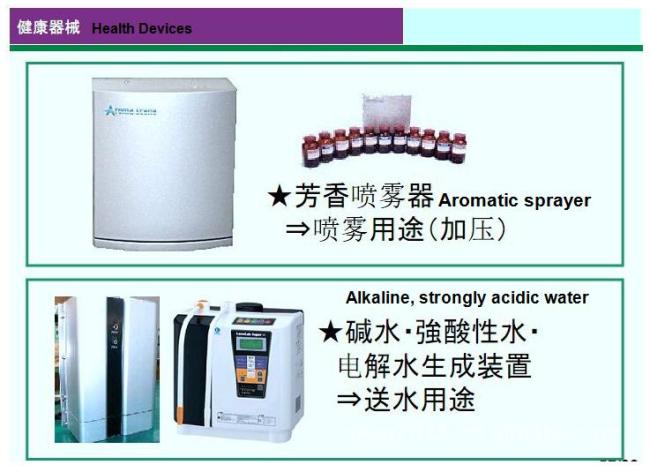

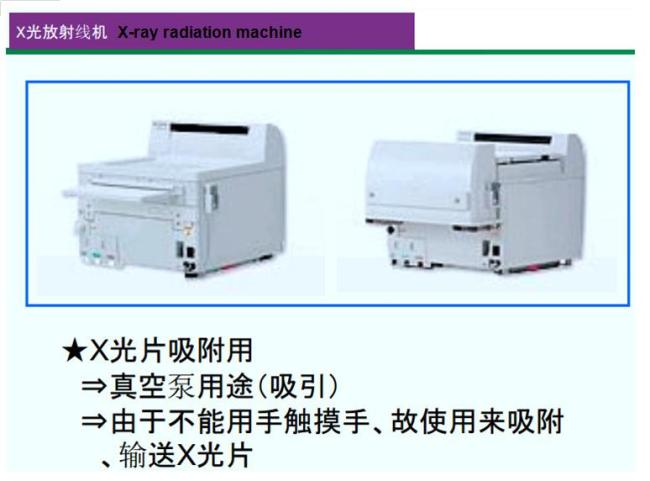

Typical Applications
