MagicBox BWDS4000 Series Bottled Water PLUS Dispensing System 12V 115V 230V Optional

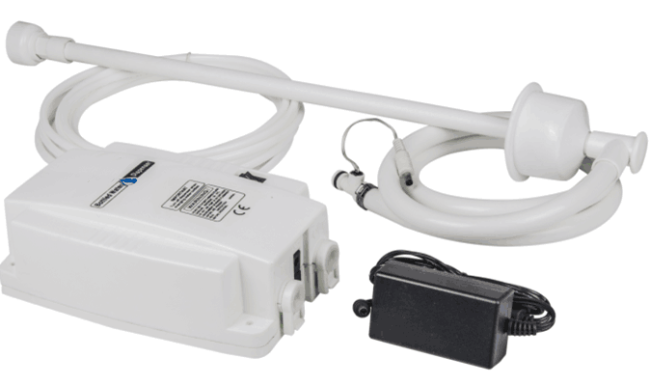

MagicBox Bottled Water PLUS Dispensing System BWDS4000
The Most Reliable and Efficient Bottled Water Dispensing System You Can Buy!
The new and improved Bottled Water PLUS is part of Surflo's premium water dispensing product line. When a water bottle is connected to the system, fresh water is available for use with coffee/tea machines, water dispensers, refrigerators, ice makers, or any other application where portable potable water is needed. The Bottled Water PLUS system is also designed for convenience-the pump shuts off when the water source is depleted, and when water is restored, the pump will automatically restart. This eliminates the chance of any damage to the appliance running dry.
ADVANTAGES
- Illuminated On/Off Switch Provides clear visibility in dark cabinets or hard to reach places
- Long Life Motor Ensures years of reliable operation.
- Surflo® Diaphragm Pump Provides dependable run dry capabilities, extending the life of the pump.
- Quick Disconnect Ports Allows for easy wand replacement in seconds.
- Quiet Operation Equipped with noise dampening rubber feet to minimize noise pollution.
- Thermal Protection Prevents overheating, protecting the pump and control box from damage.
- Over the past 12 years, Surflo® Bottled Water Systems have helped serve over two million cups of coffee per day in cafes and coffee shops worldwide.
- Backed by the Surflo brand of electric diaphragm pump technology, a brand enjoying over 10 years of operational excellence.
- Surflo®'s robust electric diaphragm pump design, proven with over seven million units in service.
- Surflo® Bottled Water Systems protect the environment by eliminating the need for a water filter when dispensing water to your refrigerator, preventing over 300,000 filters from being disposed of each year.
SPECIFICATIONS
Flow Rate |
1.10 (gpm)
|
Max. Pressure |
40 (psi)
|
Dimensions |
6.86H x 13.72W x 21.60D (cms)
|
Voltage |
115 or 230 (VAC) |
Amp Draw |
0.5 Amps for 115 VAC, 0.3 Amps for 230 VAC |
Cycles |
50/60 for AC models (Hz) |
Weight |
2.04 (kg)
|
CHEMICAL RESISTANCE
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable - —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | - | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | - | |
| 30% | C2 | A6 | A4 | - | B3 | - | ||
| 60% | X | A6 | A4 | - | C2 | - | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | - | - | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | - | |
| 50% | A3 | A6 | X | B1 | A4 | - | ||
| Bromine Water | C1 | A3 | A2 | - | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Ketone | A2 | A6 | X | - | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | - | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | - | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | - | X | A4 | ||
| Xylene | X | A6 | B1 | - | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | - | X | A5 | ||
| Oleum | X | A6 | A4 | - | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | - | ||
