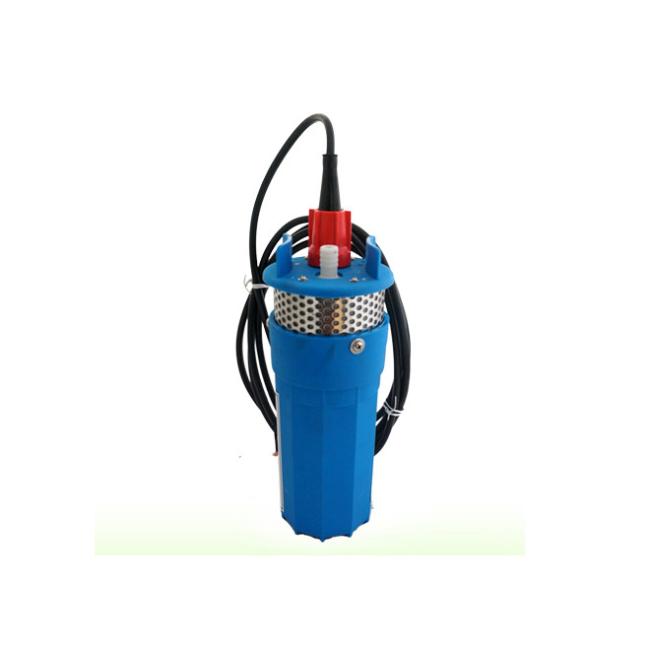

AQUAWING KSP Solar submersible water pump DC irrigation pump drainage deep well pump 6.5LPM
AQUAWINGTM KSP Solar submersible pump water pumps household batteries DC pumps irrigation pump drainagedeep well pumps 6.5L/min
The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins
SPARE PARTS
Solar water pump
3 meters cable
FEATURES
1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
10. Outlet Port: 1/2" (12.7mm) Barbed Fitting
11. Inlet: 50 Mesh Stainless Steel Screen
12. Material: High Strength Engineered Plastic.
SPECIFICATIONS
MODEL NUMBER: KSP-243
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 3.0 Degree
MOTOR: Permanent Magnet, Thermally protected
VOLTAGE: 24 VDC Nominal (Reduced Volume @ 12VDC)
WATTS: 120W
AMPS: 4.0 MAX
FUSE: 7.5 AMP (Automotive) Not Included
INTERNAL BYPASS: 105-110 P.S.I. MAX (7.2-7.5 bars)
MAXIMUM LIFT: 230 ft (70 M)
SUBMERSION: 100ft (30 M) Maximum Below Waterline
OUTLET PORT: 1/2" (13 mm) Barbed Fitting
INLET: 50 Mesh Stainless Steel Screen
MATERIALS: High Strength Plastics Stainless Steel Hardware
APPLICATION: Potable water well pump
NET WEIGHT: 6 lbs (2.72 kg)
| MODEL |
VOLTS VDC |
OPEN FLOW GPM | MAX. AMPS | CONTROL | MAX. SUBMERSION | MAX. HEAD | PORTS | HOUSING MATERIAL | VALVE MATERIAL | DIAPHRAGM MATERIAL | MOTOR FINISH | MOTOR WIRING | SUPPRESSION |
| KSP-043 | 12/24 | 1.9 | 4.5 | Bypass | 100 Feet | 230 Feet |
1/2" Barb with 1/2"NPT-M Hose Kit |
Fortron/Nylon | EPDM | Santoprene | Submersible Case | Cord Kit | None |
| KSP-083 | 12/24 | 1.9 | 4.5 | Bypass | 100 Feet | 230 Feet |
1/2" Barb with 1/2"NPT-M Hose Kit |
Fortron/Nylon | EPDM | Santoprene | Submersible Case | Cord Kit | CE |
| KSP-243 | 12/24 | 1.9 | 4.5 | Bypass | 100 Feet | 230 Feet |
1/2" Barb with 1/2"NPT-M Hose Kit |
Fortron/Nylon | VITON | Geolast | Submersible Case | Cord Kit | None |
FLOW-HEAD CURVE
DIMENSIONS DRAWINGS
TYPICAL APPLICATIONS
EXPLODED VIEW
CHEMICAL RESISTANCE
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable － —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | － | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | － | |
| 30% | C2 | A6 | A4 | － | B3 | － | ||
| 60% | X | A6 | A4 | － | C2 | － | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | － | － | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | － | |
| 50% | A3 | A6 | X | B1 | A4 | － | ||
| Bromine Water | C1 | A3 | A2 | － | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Ketone | A2 | A6 | X | － | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | － | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | － | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | － | X | A4 | ||
| Xylene | X | A6 | B1 | － | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | － | X | A5 | ||
| Oleum | X | A6 | A4 | － | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | － | ||
USAGE SCOPE
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
