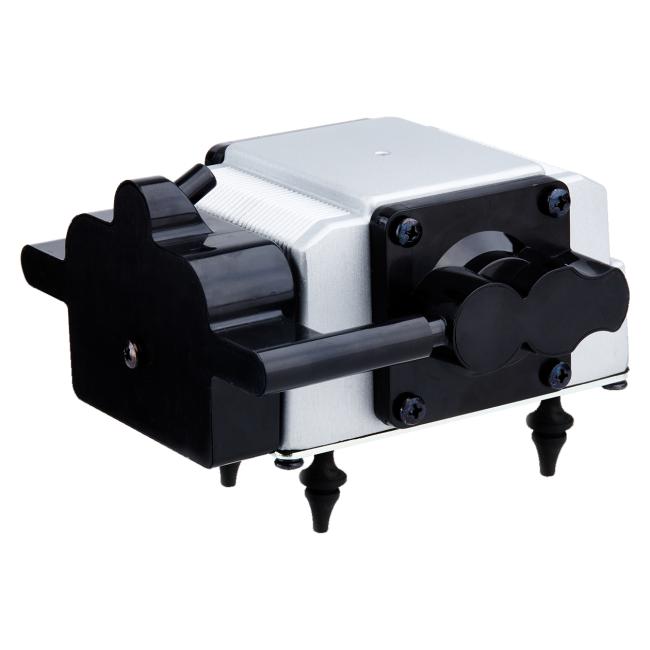

AIRJET Electromagnetic Pump air pump KDP57A-220A quiet working AC 100V
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10-15days
Brand:
AIRJET
Product Description
AIRJET Electromagnetic Pump KDP57A-220A air pump quiet working AC 220V
Specifications
| 1. Rated Voltage | AC 21V | AC220V | AC220V | AC120V |
| 2. Rated Current | Max. 1.7mA(50Hz AC21V), Max. 1.7mA, (60Hz AC21V) |
Max. 170mA(50Hz) Max. 180mA(60Hz) |
Max. 300mA(50Hz) Max. 300mA(60Hz) |
Max. 430mA(50Hz) Max. 460mA(60Hz) |
| 3. Resistance | 3.8Ω±10%(25°C) | 435Ω±10%(25°C) | 245Ω±10%(25°C) | 77±10%(25°C) |
| 4. Power Consumption | Max. 20 W(50Hz) Max. 15W(60Hz) | Max. 21W(50Hz) Max. 19W(60Hz) | REF 26W(50Hz) REF 20W(60Hz) | REF 25W(50Hz) REF 21W(60Hz) |
| 5. Air Flow Without Load | 20L/min(50Hz) 18L/min(60Hz) | 23L/min(50Hz) 18L/min (60Hz) | 26L/min(50Hz) 20L/min(60Hz) | 24L/min(50Hz) 22L/min(60Hz) |
| 6. Max. Pressure | 30Kpa±16% (50Hz), 189~261mmHg ; 36Kpa±16% (60Hz), 226~313mmHg |
25Kpa(50Hz),187mmHg 31Kpa(60Hz),233mmHg |
35±15%Kpa (50Hz), 224~302mmHz; 41±15%Kpa (50Hz), 264~356mmHz |
36±15%Kpa (50Hz), 230~310mmHg 40±15%Kpa (60Hz), 255~345mmHg |
| 7. Noise Level | <55dB(50Hz,50cm away) | <55dB(50Hz,50cm away) | <55dB(50Hz,50cm away) | <55dB(50Hz,50cm away) |
| 8. Apply For | Air | Air | Air | Air |
| 9.Insulation Level | E | E | E | E |
