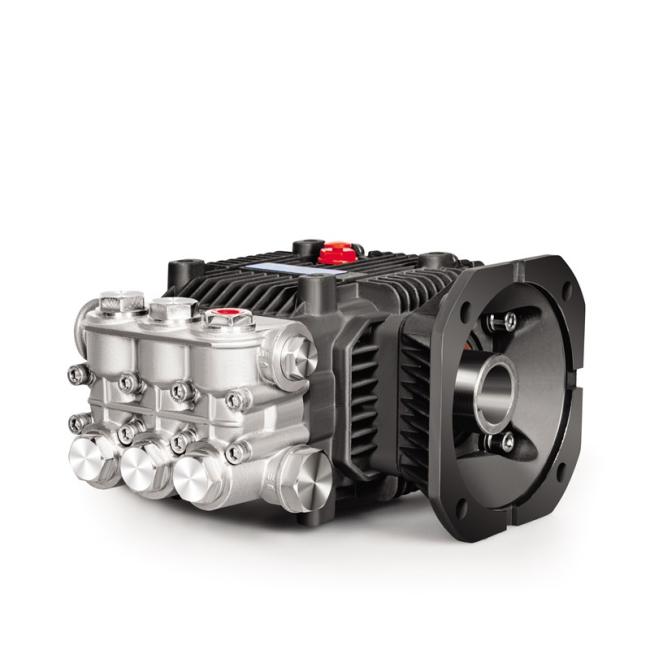

FLOWMONSTER LB-F3 high pressure stainless steel plunger pump Sea Water Reverse Osmosis Desalination Pressure Washer Pump
Price:
500-1200pcs
MOQ:
1-100pcs
Delivery Time:
10-30 working days
Brand:
FLOWMONSTER
Product Description
FLOWMONSTER LB-F3 Stainless steel plunger pump Sea Water Reverse Osmosis Desalination Stainless Steel Pressure Washer Pump
Basic Info
- Model No.: LB0610
- Structure: Radial Plunger Pump
- Cylinder Number: Multi Cylinder
- Drive Mode: Mechanically Driven Pump
- Pump Shaft Position: Horizontal
- Type: Radial
- Power: Electric
- Lubrication: Oil Bath

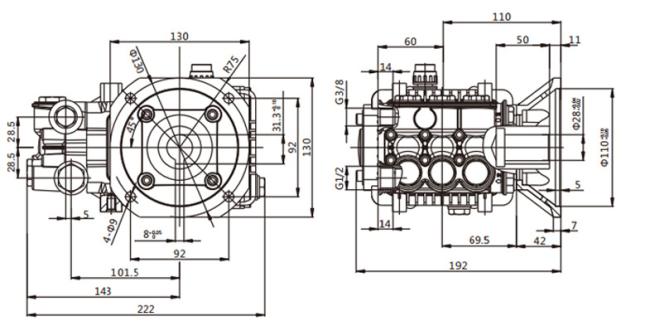

- Dimension: 246x 207 X 187mm
- Weight: 9 Kg
- Oil Capacity: 0.4 Kg
- Inlet Port: 1/2
- Discharge Port: 3/8
- Speed: 1450 R.p.m
- Plunger Type: Ceramic Coating
- Seals: Corrosion Resistance
- Flow Rate: 6 L/min
Applications:
- medicine chemical industry
- Desalination/Reverse Osmosis
- Pump for RO desalination
- Beverage Industry
- Industrial Waste Water
- Food processing
- Pharmaceutical & chemical industries
- Reverse osmosis
- Desalination
- Car, Truck, Vehicles Washing
- Waster Water Control
| Stainless Steel Manifold, Hollow Shaft, 28mm High Pressure Pump | |||||||||
| Model | Flow | Pressure | Power | Speed | Plunger Dia | Stroke | |||
| l/min | gpm | bar | psi | hp | kw | rpm | mm | mm | |
| LB610C | 6 | 1.4 | 100 | 1450 | 1.5 | 1.1 | 1450 | 15 | 7 |
| LB606C | 6 | 1.4 | 60 | 870 | 1 | 0.75 | 1450 | 15 | 7 |
| LB810C | 8 | 2.08 | 100 | 1450 | 2 | 1.5 | 1450 | 18 | 7 |
| LB807C | 8 | 2.08 | 70 | 1015 | 2 | 1.5 | 1450 | 18 | 7 |
| LB1210C | 12 | 3.17 | 100 | 1450 | 3 | 2.2 | 1450 | 18 | 14 |
| LB1207C | 12 | 3.17 | 70 | 1015 | 3 | 2.2 | 1450 | 18 | 14 |
| LB1507C | 15 | 4.09 | 70 | 1015 | 3 | 2.2 | 1450 | 18 | 14 |
| LB1510C | 15 | 3.96 | 100 | 1450 | 3 | 2.2 | 1450 | 18 | 14 |
