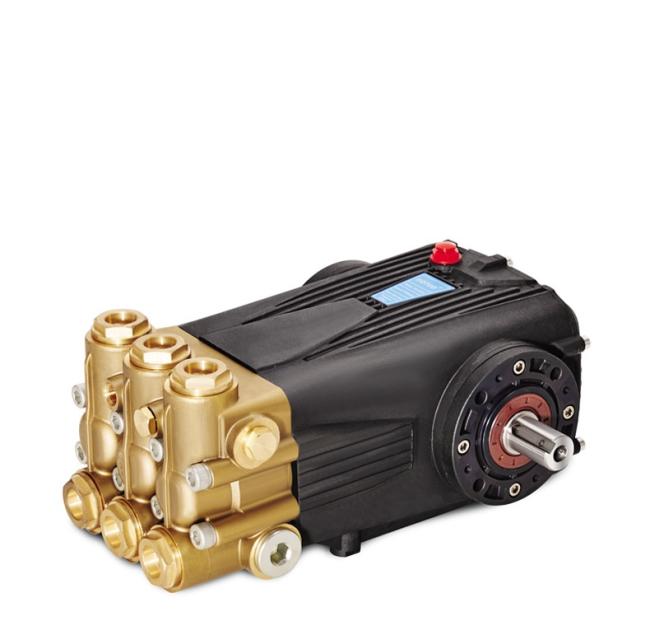

FLOWMONSTER DS series High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi
Price:
500-1200pcs
MOQ:
1-100pcs
Delivery Time:
10-30 working days
Brand:
FLOWMONSTER
Product Description
FLOWMONSTER DS High Pressure Triplex Plunger Pump 12-72LPM 100-500Bar/1450-5075Psi
Specifications Details :
- Folw : 12-72 L/min , 3.17-19.02 gpm
- Pressure : 100-500 bar , 1450-7250 psi
- Power : 11-22 kw , 15-30 hp
- Speed : 1450 rpm
Applications:
- Commercial Contractor Cleaning
- Oil & Gas
- Misting, Cooling & Fogging
- Agriculture & Food Processing
- Process Industries
DS Series High Pressure Plunger Pump 12-72 L/Min 100-500Bar
| Model | Flow | Pressure | Power | Speed | Plunger Dia | Stroke | DIMENSIONS | Peso Weight | |||
| L/min | gpm | bar | psi | hp | kw | rpm | mm | mm | mm | kg | |
| DS1240 | 12 | 3.17 | 400 | 5800 | 15 | 11 | 1450 | 18 | 11 | 326*258*161 | 16 |
| DS1640 | 16 | 4.23 | 400 | 5800 | 20 | 15 | 1450 | 18 | 15 | 326*258*161 | 16 |
| DS2150 | 21 | 5.46 | 500 | 7250 | 20 | 15 | 1450 | 18 | 20 | 326*258*161 | 17 |
| DS2235 | 22 | 5.81 | 350 | 5075 | 30 | 22 | 1450 | 18 | 20 | 326*258*161 | 17 |
| DS3025 | 30 | 7.92 | 250 | 3625 | 20 | 15 | 1450 | 28 | 11 | 326*258*161 | 18 |
| DS4020 | 40 | 10.57 | 200 | 2900 | 20 | 15 | 1450 | 28 | 15 | 326*258*161 | 18 |
| DS5015 | 50 | 13.21 | 150 | 2175 | 20 | 15 | 1450 | 28 | 20 | 326*258*161 | 19 |
| DS7010 | 70 | 18.49 | 100 | 1450 | 20 | 15 | 1450 | 32 | 20 | 326*258*161 | 20 |
| DS7215 | 72 | 19.02 | 150 | 2175 | 30 | 22 | 1450 | 32 | 20 | 326*258*161 | 20 |
DS-N
