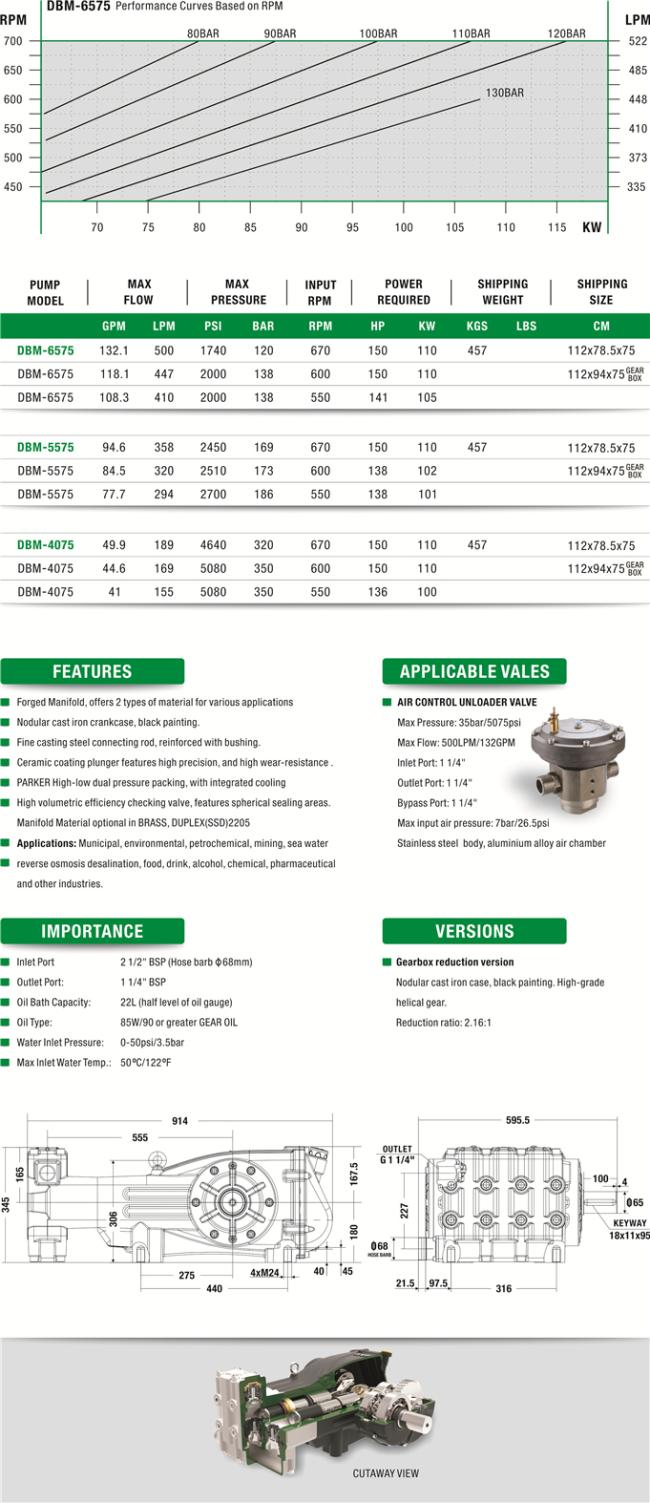

DBM SERIES

RECIPROCATINGHIGH PRESSURE

PLUNGER PUMP

Other name:

Plunger pump | Triplex plunger pump | Reciprocating plunger pump | Triplex pump| Industrial plunger pump | High pressure plunger pump | Industrial reciprocating plunger pump | Industrial high pressure plunger pump| Industrial reciprocating plunger pump | Industrial triplex pump | Industrial high pressure triplex pump | industrial reciprocating triplex pump | Durable high pressure plunger pump | Corrosion resistant high pressure plunger pump | Stainless steel triplex pump | Stainless Steel Plunger Pump | High pressure stainless steel pump | Stainless steel high pressure plunger pump | Stainless steel plunger pump | Duplex stainless steel plunger pump | Duplex stainless steel high pressure plunger pump | Ceramic plunger pump | Sewer Jetting Pump | Sewer jetting plunger pump | Sewer jetting Pump | Sewage jetting plunger pump | Seawater Plunger Pump | Sandblasting plunger pump | Reverse osmosis plunger pump | Desalination plunger pump | Street Sweeping plunger pump | Commercial plunger pump | Heavy duty plunger pump | Pressure washer plunger pump | Pressure washer pump |High pressure washer pump|Brass head plunger pump |Heavy duty triplex pump |Commercial triplex pump|Pressure washer triplex pump |High pressure washer triplex pump |Brass head triplex pump | High Pressure Washer Pump

FEATURES

Forged Manifold, offers 2 types of material for various applications

Nodular cast iron crankcase, black painting.

Fine casting steel connecting rod, reinforced with bushing.

Ceramic coating plunger features high precision, and high wear-resistance.

PARKER High-low dual pressure packing, with integrated cooling

High volumetric efficiency checking valve, features spherical sealing areas.

Manifold Material optional in BRASS,DUPLEX(SSD) 2205

Applications:Municipal, environmental, petrochemical, mining, sea waterreverse osmosis desalination,

food, drink, alcohol, chemical, pharmaceutical and other industries.

IMPORTANCE

Inlet Port: 2 ½” BSP(Hose barbΦ68mm)

Outlet Port: 1 ¼”BSP

Oil Bath Capacity:22L(half level of oil gauge)

Oil Type: 85W/90 or greater GEAR OIL

Water Inlet Pressure:0-50psi/3.5bar

Max Inlet Water Temp.50°C/122°F

APPLICABLE VALVES

AIR CONTROL UNLOADER VALVE

Max Pressure: 35bar/5075psi

Max Flow: 500LPM/132GPM

Inlet Port: 1 ¼”

Outlet Port: 1 ¼”

Bypass Port: 1 ¼”

Max input air pressure: 7bar/26.5psi

Stainless steelbody, aluminum alloy air chamber

VERSIONS

Gearbox reduction version

Nodular cast iron case, black painting. High-grade helical gear.

Reduction ratio: 2.16:1
