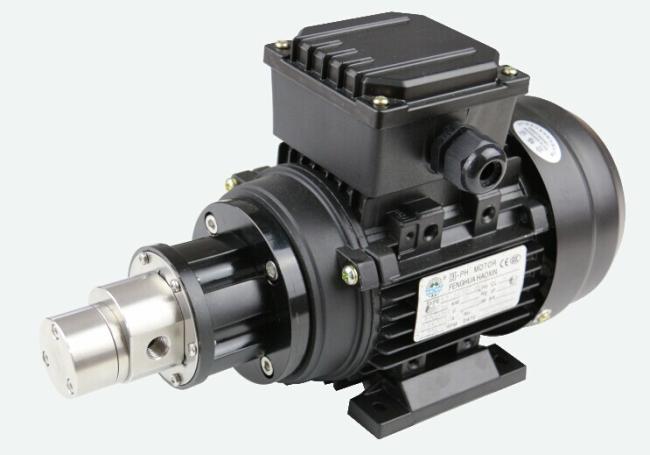

FLOWDRIFT Magnetic Drive Gear Pump KGP-06K 220V 380VAC Asynchronous Motor Stainless Steel 316L Body PEEK Gears PTFE Sealing Food Grade for Beverage Filling Machine Chemical Metering Packing Machine

KGP-06K magnetic drive gear pump adopt the AC asynchronous motor as power; with the shaft ends of motor connected with the outer annual magnetic loops of REPM to drive the gear pump. This series are featured by constant speed, large torque and operating steadily for a long time. Meanwhile, under the power supply of 380V50(60)Hz,it can regulate the flow of pump if adopting the tri-phase AC variable frequency motor and mating converter.The whole KGP-06 series can be equipped with the type AC asynchronous motor.

Main applications:

Widely used in Science& teaching instrument; Transfer high temperature; Packing machine ;Medical treatment and medicine; Instrument testing; Fine chemistry; Pesticide spraying; Testing equipment.

Model specification

Field of application

• science instruments • Food Processing • Packaging Machinery • Medical &

• equipment testing • Fine Chemicals • Agricultural spray • Test Equipment

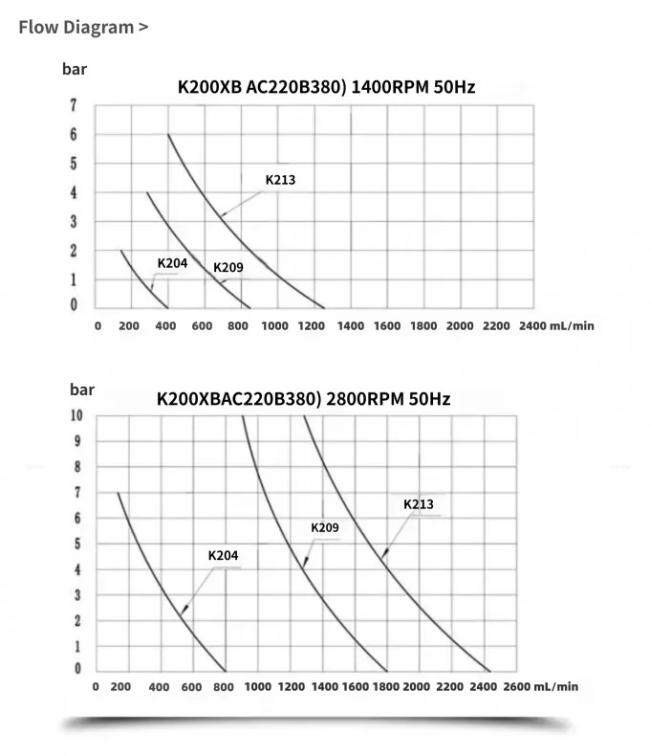

Technical parameters

Note: 1. Ambient temperature: -10 ℃ ~ 50 ℃; Humidity: ≤75%.

2, Motor Power: one-phase Motor2 and 4-pole are 120W, three-phase Motor2 and 4-pole are 180W.

3, Motor Voltage: AC220V or AC380V.

4, Speed ​​mode: one-phase Motor unable governor, three-phase inverter Motor with inverter.

5, protection class: IP54.

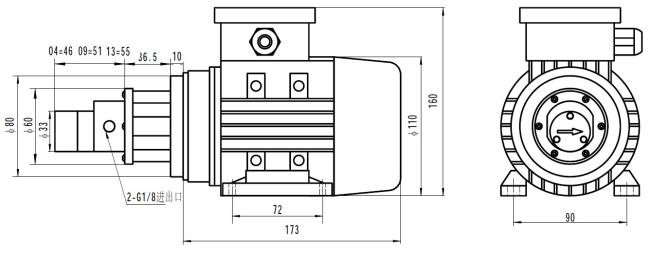

Outline dimension chart:
