Customized wholesale 30 String Wound Filter Cartridge PP Yarn Water Filter Cartridge
30"5u String Wound Filter Cartridge PP Yarn Water Filter Cartridge
PP String Wound Cartridge Filter Specification:
1.High Dirt Holding Capacity
2.High Water Flow Rater Filter
3.pp yarn filter cartridge
4.10-40inch Filter
PP String Wound Cartridge Filter Parameters:
|
Length
|
10"/20"/30"/40" |
|
inner diameter
|
28mm(30mm) |
|
outer diameter
|
62±1mm |
|
micron
|
1,5,10,20,50,100um |
|
material
|
polypropylene yarn |
|
application field |
electroplating,food factory,chemical factory,power plant an any other widely fileds |
The function and characteristics:
1, can effectively capture and intercept all kinds of particles in the liquid impurities;
2, with the honeycomb type depth structure, with the large amount of sewage interception, interception effect is good;
3, do not fall off the fiber filter;
4, acid and alkali resistance, suitable for PCB, electroplating, chemical and other production process requirements;
5, have good accuracy control, can be multi model accuracy;
6, low cost! Suitable for a large number of applications, and the replacement is simple, easy to operate.
The product uses: suitable for PCB, electroplating, semiconductor, photoelectric, ultrasonic, chemical,
Filtration of oil, water and other liquids!
Performance specifications:
| Product | Wire string filter cartridge |
| Material | Polypropylene,absorbent cotton, glass fibre |
| Precision filtration | 1~100micron |
| Outer diametr | 60~62mm |
| Inner diameter | 28mm or 30mm |
| Length | 5'',10'',20'',30'',40'' |
| Max differential pressure | 2 kgf/cm² |
| Max pressure | 4 kgf/cm² |
| Max operating temperature |
PP with PP core:60 °C PP with SS core: 100 Absorbent cotton with SS core:120 Glass fibre with SS core: 180~300 |
| Operating differential pressure | 0.1kgf/cm2 |
| Brand |
dannovo |

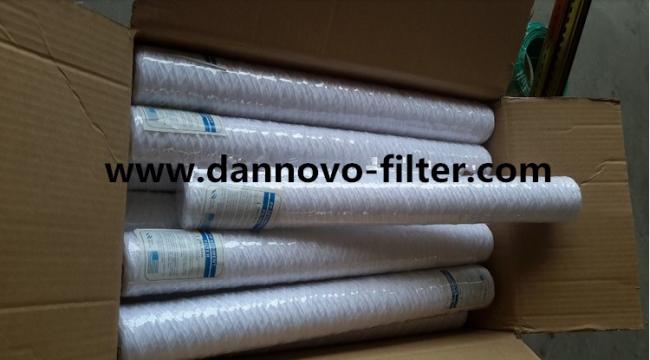

PP string wound cartridge filter shows:
