Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Price:
FOB SHENZHEN USD
MOQ:
1000PCS
Delivery Time:
5-7days
Brand:
JSUS
Product Description
www.jsustech.com
Model: JS-35
Certificate: CE
Dimension: Φ10.5*21.5mm
Housing: ABS ,white /brown
Gap: 15-25mm; 20-25mm availAble
Output: N.C. N.O. & Changeover available
Leads: 1007UL22AWG430mm; wire with cable available
Package:
Outer packing: 1600 sets/carton
Gross Weight: 20.0KG

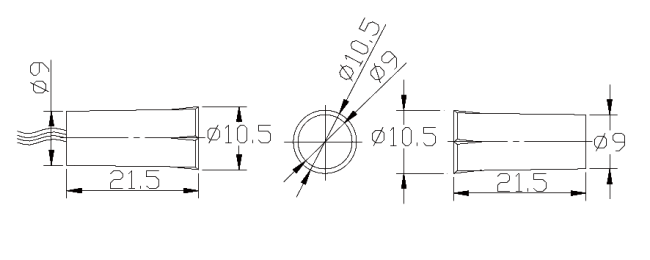

2.0 Dimension(mm)
3.0 Order information
| Specification | Output | Casing Material | Action Gap(mm) | Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) | MOQ(PCS) |
| NC-ABS-1525 | NC | ABS | 15-25 | 0.5A/100V/10W/200mΩ | 0 |
| NC-ABS-2025 | NC | ABS | 20-25 | 0.5A/100V/10W/200mΩ | 1000 |
| NO-ABS-1525 | NO | ABS | 15-25 | 0.2A/30V/3W/200mΩ | 500 |
| COM-ABS-1525 | changeover | ABS | 15-25 | 0.2A/30V/3W/200mΩ | 500 |
Key words : magnetic contact reed switch magnetic switch sensor door switch sensor recessed mount switch
