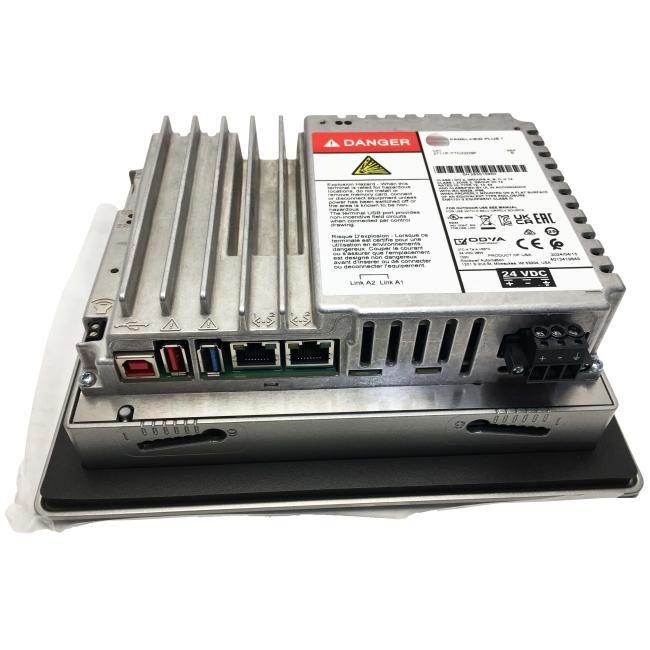

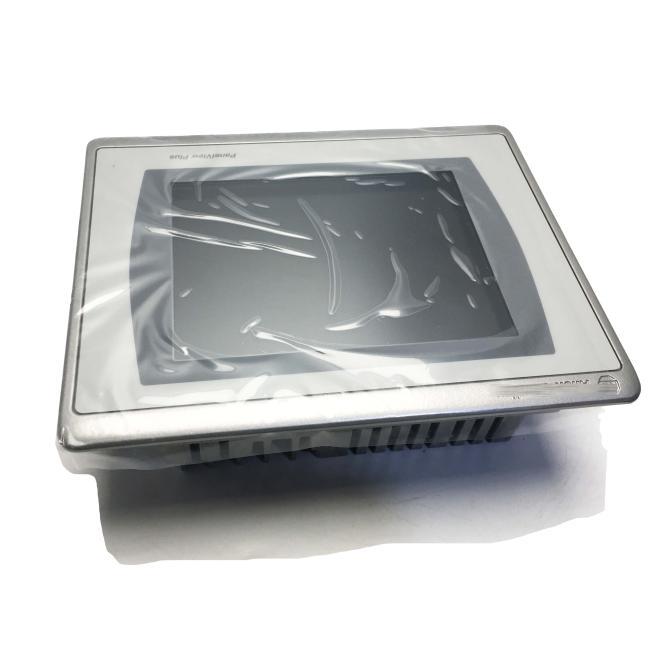

2711P-T7C22D9P HMI PanelView Plus7 Color Touch Screen New Sealed

The 2711P-T7C22D9P is a 6.5-inch, Colored Thin Film Transistor (TFT) screen. With this screen size, this performance terminal is ideally used for simple and small applications as it only has a viewing area of 132 x 99 mm or 5.2 x 3.9 inches and display resolution of 640 x 480 SVGA, 18-Bit and supports. It supports 18-bit color graphics, allowing it to display static and dynamic graphics with color coded design. This enables a higher level of information, contributing to a more efficient and accurate control. With the touch input interface, the operator is provided with a comfortable input interface as the touchscreen mechanism permits direct interaction to runtime objects without the need of referencing external keypads. It is ideal to operate the touchscreen interface with an actuating force of 100 g using a gloved finger or stylus.

The PanelView Plus 7 Performance terminals include these features and capabilities:

• FactoryTalk® View Machine Edition software provides a familiar environment for creating HMI applications

• Connection to ControlLogix or CompactLogix 5370 controllers

• Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies

• Conformal coating available for all DC power, touch-only terminals, and the 15-in. DC power, keypad and touch terminal

• Stainless steel, hygienic, brandless, DC-power, and conformal coating are available for the touch-only units in the 9-in. wide screen, 10-in., 12-in. wide screen, and 15-in. terminal sizes

• On-machine mounting available for the 12.1-in. wide screen, touch-only terminals
