FANUC A16B-3200-0421 | i-B Series Stand-Alone Control Main CPU PCB — Series 16i / 18i / 21i Model B

Part Number: A16B-3200-0421

Manufacturer: FANUC Ltd. (Japan)

Product Type: Stand-Alone Control Main CPU PCB — i-B Series

The Core of the i-B Series Control

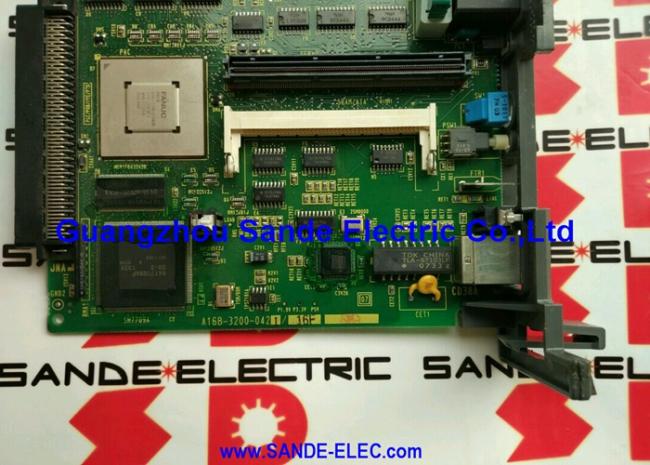

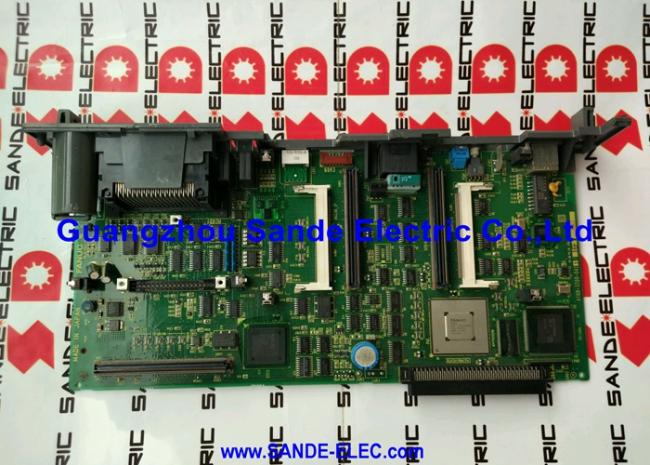

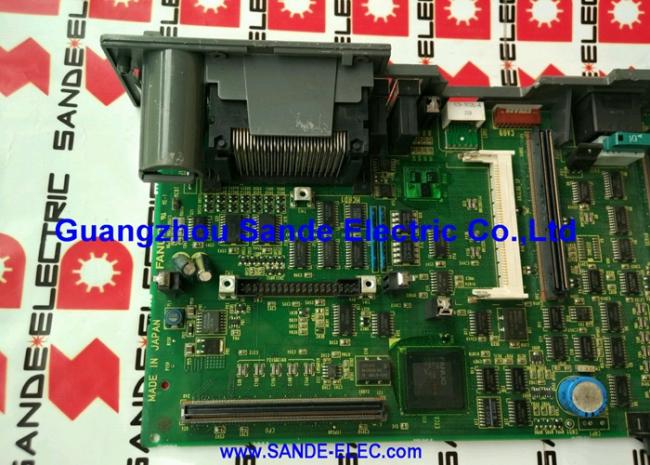

The A16B-3200-0421 is the main CPU PCB for FANUC's i-B Series standalone CNC control — the central board in 16i-B, 18i-B, and 21i-B systems around which the entire control is assembled. It is the physical carrier board onto which the separate plug-in modules mount: the CPU processor, the FSSB servo controller, the graphics display card, and the SRAM/DRAM/FROM memory modules.

In FANUC's i-B Series architecture, the main board itself does not execute CNC functions — the plug-in modules do. The main board distributes the backplane interconnect, power supply rails, and communication buses that let all the plug-in modules work together as a unified control. This architecture means the main board can be supplied without plug-in modules installed, as its role is structural and electrical — not computational.

When supplied for replacement, the A16B-3200-0421 comes without any plug-in boards. The CPU module, servo module, memory modules, and graphics card from the original installation must be transferred to the replacement main board, or new modules must be sourced separately.

Data Reload Requirement

Replacing the A16B-3200-0421 with any new or refurbished unit will result in loss of all CNC data — parameters, part programs, PMC ladder, and tool offsets — unless those data items reside entirely on the memory modules being transferred.

All data must be backed up before the main board is removed. The backup includes CNC parameters, part programs, PMC data, and any system configuration. After installation of the replacement board with the original plug-in modules, a full data restore from backup is required before the CNC can operate correctly.

Key Specifications

FAQ

Q1: The A16B-3200-0421 is being replaced. Which plug-in modules must also be transferred?

All plug-in boards that were installed on the original main board must be transferred to the replacement: the CPU processor module, FSSB servo controller module, graphics module, and all memory modules (SRAM, DRAM, FROM). If any module is left behind, the corresponding CNC function will be absent. Transfer the modules carefully — ESD protection and correct handling are essential.

Q2: After replacing the main board and transferring all plug-in modules, the CNC shows all parameters as zero or default. What happened?

If SRAM memory content is lost, the CNC reverts to default parameter values. This occurs if the SRAM battery died during the board swap, if the SRAM module was handled without power for too long, or if static discharge damaged the SRAM module during transfer. Restore the parameter backup immediately. If no backup exists, full recommissioning is required.

Q3: The A16B-3200-0421 is supplied without any plug-in boards. Can the CNC boot without them?

No. The main board alone cannot boot the CNC — it provides no computing or storage capability without its plug-in modules. The CPU processor module, memory modules, and FSSB module are all required for any CNC operation to take place.

Q4: The original CNC used a 16i-B. Can A16B-3200-0421 also serve an 18i-B or 21i-B replacement?

The A16B-3200-0421 is documented across all three: 16i-B, 18i-B, and 21i-B. The hardware is the same backplane structure. The system-specific differences are handled by the plug-in CPU and memory module configuration, not the main board itself. With the correct plug-in modules, the board serves all three series.

Q5: Where is the A16B-3200-0421 sourced?

Specialist FANUC CNC spare parts and repair companies hold exchange and surplus stock for this board. Suppliers who can test the complete board assembly — main board plus plug-in modules — on a working 18i-B test rig before shipment offer the most reliable supply. Request a full system test certification where possible.
