Industrial Automatic Baguette Production Line: High-Capacity Modular System

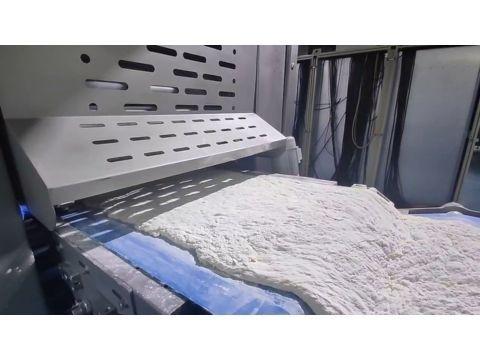

This baguette production line is designed for handling high-hydration soft dough with a dough water content up to 78%. Operating on stress-free dough band technology, the line processes soft dough gently without mechanical squeezing. This industrial feeding method minimizes tension, protecting the natural dough texture to achieve the same open crumb quality as traditional handmade bread.

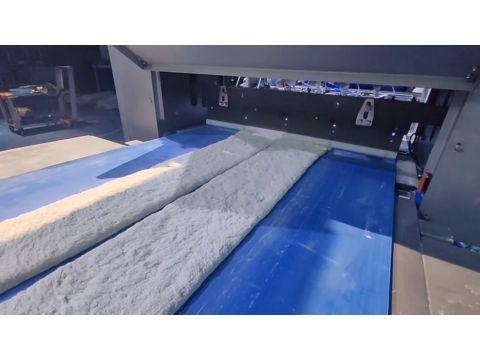

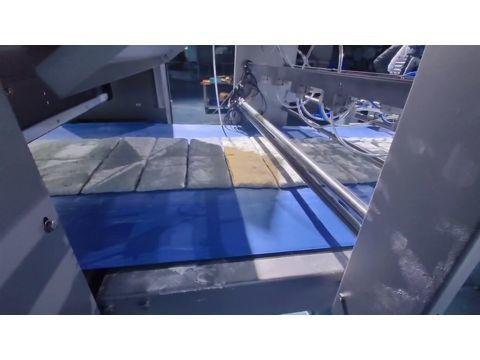

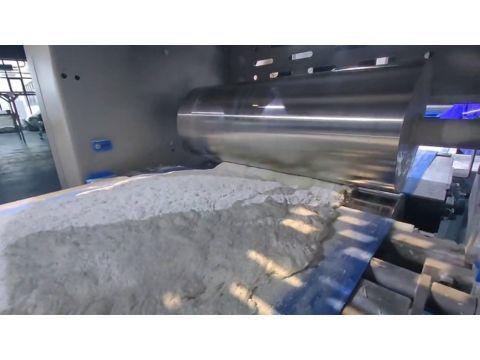

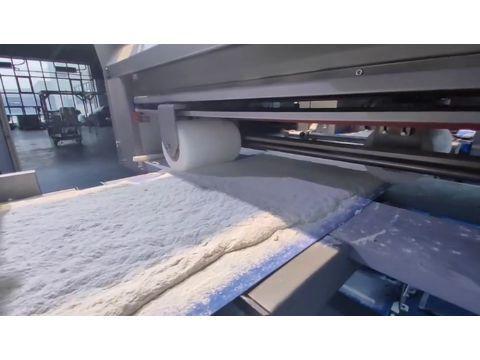

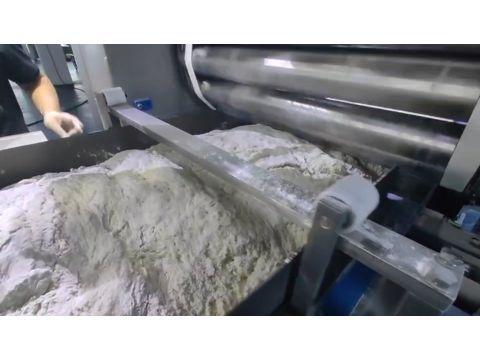

This modular bread line features a continuous, automated processing sequence consisting of a dough chunker, dough band forming machine, satellite rollers, calibrator, cross roller, longitudinal cutter, guillotine, and an automatic panning machine. The belt width and dough band thickness are fully adjustable to meet specific production requirements. By changing cutting tools and forming dies, the system allows bakeries to produce adjustable bread sizes with flexible control over length and diameter.

For high-capacity manufacturing up to 1500 kg/h of dough, the line features an automatic panning machine managed by a central PLC control system. The system retracts and deposits the shaped dough pieces accurately onto standard 600mm x 800mm baking pans, with custom pan size configurations available. This turnkey integration scales up industrial production while maintaining strict product uniformity, making it an efficient solution for commercial factories upgrading their automated bakery setup.
