300- 800 Kg Capacity Swiss Roll Cake Production Line With Europe Standard Cake Dissolver
1. Product description :
ZWS series Swiss roll production line adopt one set of high automation cake batter mixer / dissolver ,
the dissolver is assembled under European standard , very high automation and reliability , after mixing ,
the mixed batter would be automatically piped to the tunnel oven ,
2. The cake batter dissolver configuration
| zws 500 cake dissolver | |||
| No. | Name | Brand | Comment |
| 1 | Reducer | Germany ,high stability | |
| 2 | Bearing | SKF | Sweden |
| 4 | Screw pump | Germany | Use motor , |
| 5 | Seal | Burgman | Germany brand , durable |
| 9 | Power switch | OMRON |
The machine use world brand electric components , which make the machine very high automation and reliability, the machine is easy to operate , 1 worker will be enough.
|
| 10 | Flow meter | AALBORG - USA | |
| 11 | Air inflation | FESTO - Germany | |
| 12 | Frequency converter | Danfoss - Denmark | |
| 13 | Sensor | IFM - Germany | |
| 14 | PLC | Siemens | |
3. Parameters :
| Model | ZWS 500 Swiss roll production line |
| Capacity | 300 - 500 kg /hr |
| Product weight | 30 - 500 g |
| Machine Power | 10 kw |
| Baking time | 10 - 12 min |
4. The cake batter that mixed with the cake batter mixer/dissolver is very uniform ,
That will highly ensure the quality of final Swiss roll .

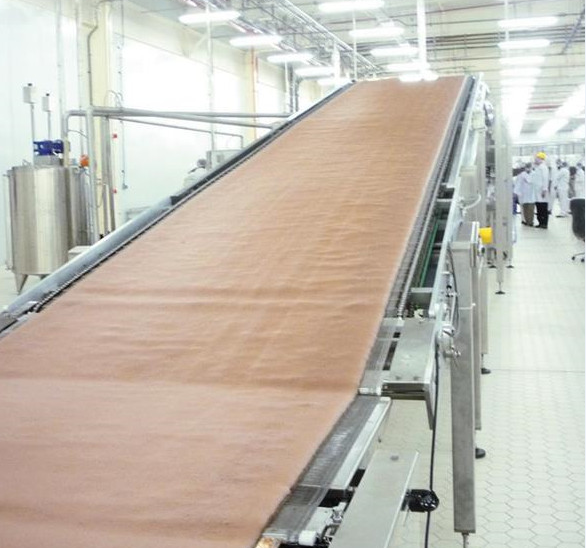

After baking the cake sheet will come out of the oven and to the cooling conveyor .
