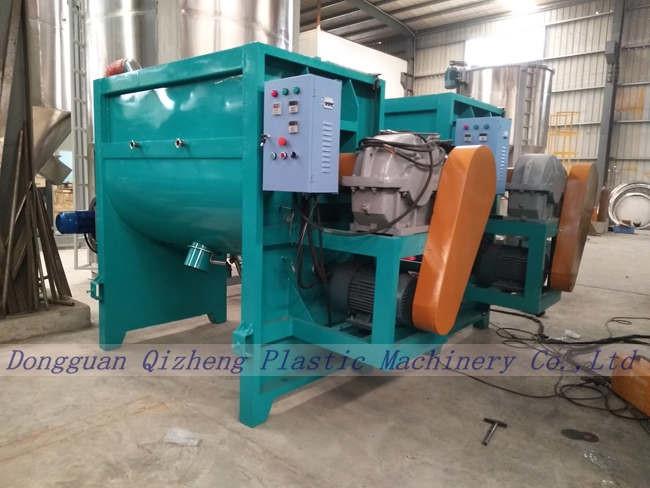

Double Ribbon Dry Powder Mixing Equipment , Dry Powder Blender Machine With Electric Heating

600KG Horizontal Double Ribbon Dry Mixer Machine With Electric Heating

Description:

The Horizontal Ribbon Mixer consist of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. Our series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.

Main features:

1. The mixer with Horizontal tank , single shaft with dual spiral symmetry circle structure.

2. The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add

    liquid device according the customer’s needs. Inside the tank there equipped the axes rotor which consist of,

    cross support and spiral ribbon.

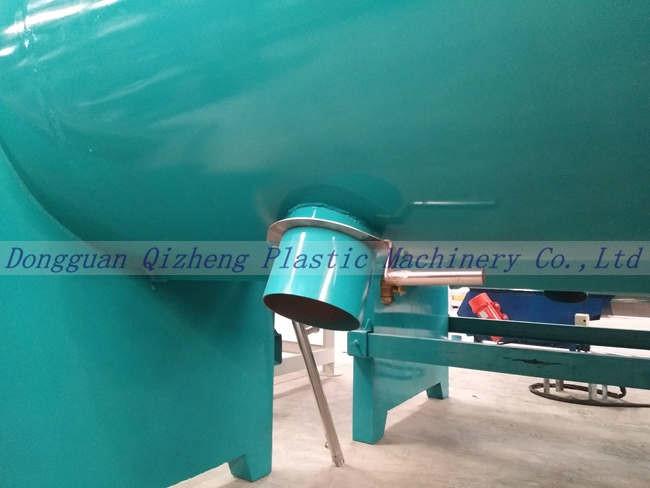

3. Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center.

    The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable

    regula- seal prohibit the leakage between the frequent close and open.

4. The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in

    short time.

Uses:

The horizontal ribbon mixer is widely used in chemical, cosmetics, fine chemicals, fertilizers, pesticides, metallurgy, mining, building materials, ceramics, refractories, dry mortar, food, feed, paint, dyes and other powders, solid-liquid, solid -slurry materials' mixing.

Specifications Parameters:
