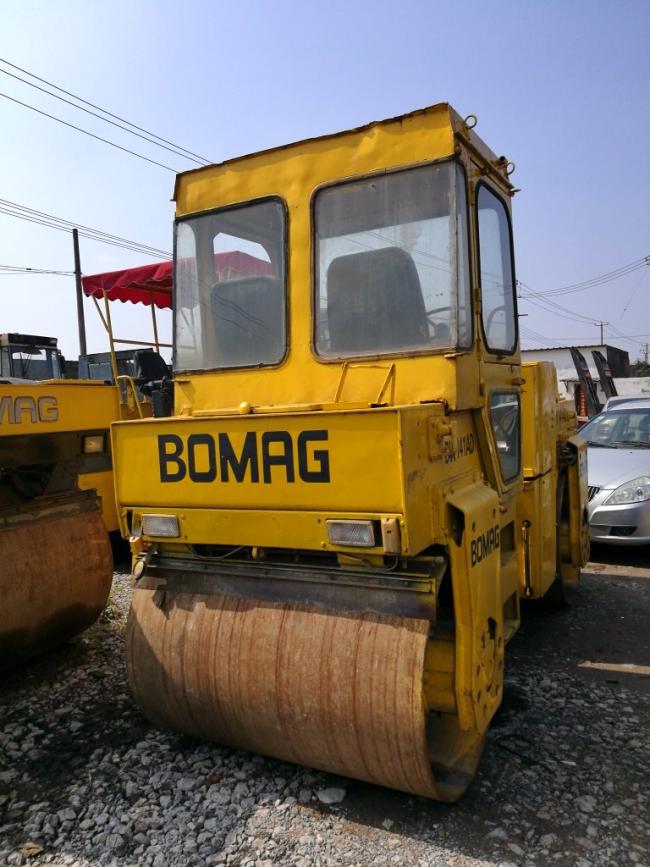

bomag BW202 compator used road roller germany roller compact four tires roller deutz engine
Price:
USD1.0
MOQ:
1.00
Delivery Time:
Whatsapp: 008615021099979
Brand:
bomag
Product Description
2002 BOMAG BW24R four tires roller Botswana Senegal Swaziland Guinea Bissau
2002 BOMAG BW24R four tires roller
year; 2002
original germany
Specification
| Engine | ||
| Make | Deutz | |
| Model | BF4L 913 | |
| Gross Power | 101.9 hp | 76 kw |
| Net Power | 93.9 hp | 70 kw |
| Power Measured @ | 2150 rpm | |
| Number of Cylinders | 4 | |
| Aspiration | natural | |
| Operational | ||
| Operating Weight | 23642.4 lb | 10724 kg |
| Fuel Capacity | 34.1 gal | 129 L |
| Hydraulic System Fluid Capacity | 219.3 gal | 830 L |
| Max Speed | 8.1 mph | 13 km/h |
| Operating Voltage | 12 V | |
| Drum | ||
| Drum Width | 84.1 in | 2135 mm |
| Drum Diameter | 48 in | 1220 mm |
| Vibration Frequency 1 | 30 Hz | |
| Nominal Amplitude - Low | 0.03 in | 0.74 mm |
| Centrifugal Force - Low | 13038.9 lb | 58 kN |
| Vibration Frequency 2 | 45 Hz | |
| Nominal Amplitude - High | 0.01 in | 0.35 mm |
| Centrifugal Force - High | 13938.2 lb | 62 kN |
| Dimensions | ||
| Overall Length | 15.8 ft in | 4810 mm |
| Overall Width | 7.6 ft in | 2321 mm |
| Height to Top of Cab | 9.5 ft in | 2900 mm |
| Wheelbase | 10.4 ft in | 3180 mm |
| Ground Clearance | 15.7 in | 400 mm |
| Drum Diameter - Front | 4 ft in | 1220 mm |
| Drum Diameter - Rear | 4 ft in | 1220 mm |
Technical Data
Shipping dimensions in m3 without ROPS with ROPS
BW 24 RH
BW 27 RH
29,434
29,434
32,025
32,025
Standard Equipment
Scraper per wheel
Hour meter
=========
