MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump

Price Negotiable
Price: negotiated
MOQ: 1pc
Delivery Time: 25 working days after received your payment
Brand: ZOZHI
Product Description

Applications



-for domestic and small industrial usage

-garden irrigation

-pressure boosting

-cooling systems



Multistage Centrifugal Pump



General



Guarantee 3 years

Pump type Centrifugal multistage

Pump



Self-priming 7m

Typical noise 64dB

Connection inlet G1”, outlet G1”

The temperature of pumped liquid 0-65℃

Maximum capacity of 90L/min

Head up to 64m



Motor



Asynchronous two poles

Thermal protector inbuilt (single phase)

Protection class IP55

Insulation Class F

Continuous operation S1

Maximum ambient temperature 40℃



Materials



Suction/discharge mounting Cast iron

Mechanical seal Graphite/Silicon carbide/NBR

Bearing steel by NSK

Impeller Sabic PPO/stainless steel

Pump housing Stainless Steel

Diffuser Sabic PPO

Motor shaft 316 stainless

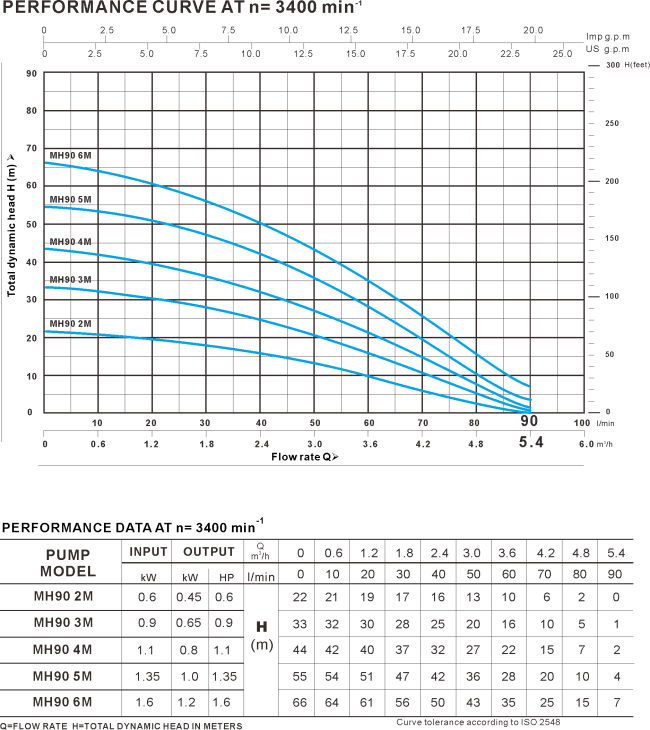

multistage pump

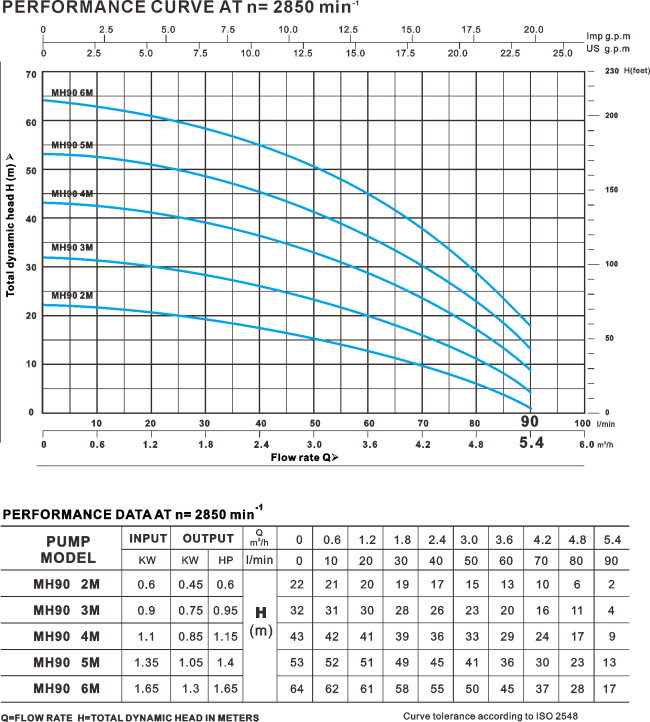

multistage pump
