3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
Price:
Negotiable
MOQ:
10,000pcs
Delivery Time:
5-7 working days after received your payment
Brand:
Double Light
Product Description
3mm Round Standard T-1 infrared light emitting diode Radiant Intensity 15mM/sr Peak Emission Wavelength 880nm
5mm Infrared Emitting Diode 880nm
- Features:
- High radiant intensity
- Peak wavelength p=940nm
- Viewing angle: 20°, Top view, through hold, radial
- High reliability
- 2.54mm lead spacing
- Description:
- Infrared Emitting Diode (IR333C-A) is a high intensity diode, molded, water clear plastic package
- The device is spectrally matched with phototransistor, photodiode and infrared receiver module
- Applications:
- Free air transmission system
- Optoelectronic switch
- Floppy disk drive
- Infrared applied system
- Smoke detector
Primary Competitive Advantages:
Country of Origin
Green Product
Guarantee/Warranty
International Approvals
Packaging
Price
Prompt Delivery
Quality Approvals
Small Orders Accepted
- Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 100 | mW |
|
Peak Forward Current |
IFP | 1.00 | A |
| Forward Current | IF | 50 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Radiant Intensity (Note 1) * | Ee | 20.0 | 25.0 | --- | mW/sr | IF=20mA |
| --- | 50.0 | --- | IF=50mA, tp=100µs, tp/T=0.01 | |||
| Viewing Angle (Note 2) * | 2θ1/2 | --- | 45 | --- | Deg | IF=20mA |
| Peak Emission Wavelength | λp | --- | 940 | --- | nm | IF=20mA (Note 3) |
| Spectral Bandwidth | △λ | --- | 50 | --- | nm | IF=20mA |
| Forward Voltage | VF | 0.80 | 1.20 | 1.50 | V | IF=20mA |
| --- | 1.50 | 1.60 | IF=50mA, tp=100µs, tp/T=0.01 | |||
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |

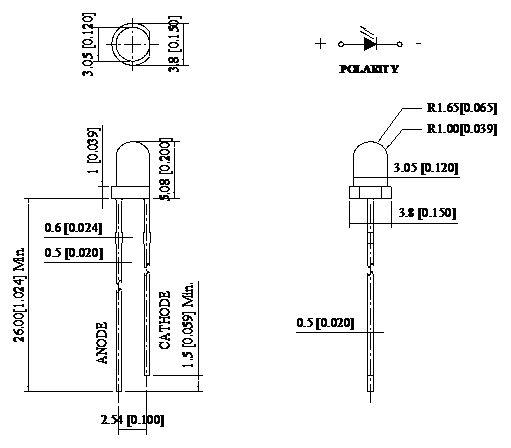

Infrared Emitting Diode Package Dimension:
