SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd
Price:
US$ 0.03-0.033per unit (Pieces)
MOQ:
1000pcs
Delivery Time:
5-7 working days after received your payment
Brand:
DOUBLE LIGHT
Product Description
SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd
0805 SMD LED Light Emitting Diode
Features:
- Package in 8mm tape on 7" diameter reel.
- Compatible with automatic placement equipment.
- Compatible with infrared and vapor phase reflow solder process.
- Mono-color type.
- The product itself will remain within RoHS compliant Version.
Applications:
- The 0402 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
- Besides, lightweight makes them ideal for miniature applications, etc
Descriptions:
- Automotive: Backlighting in dashboards and switches.
- Telecommunication: Indicator and backlight in telephone and fax
- Indicator and backlight for audio and video equipment.
- Indicator and backlight in office and family equipment.
- Flat backlight for LCD’s, switches and symbols.
- Light pipe application.
- General use.
| Part No. | Chip Material | Lens Color | Source Color |
| DL-PCB0805YGC-1PG120 | Gap | Water Clear | Yellow Green |
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 60 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Continuous Forward Current | IF | 25 | mA |
| Reverse Voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 2000 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity * | IV | 20 | 50 | --- | mcd | IF=20mA (Note 1) |
| Viewing Angle * | 2θ1/2 | --- | 120 | --- | Deg | IF=20mA (Note 2) |
| Peak Emission Wavelength | λp | --- | 575 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 573 | --- | nm | IF=20mA (Note 3) |
| Spectral Line Half-Width | △λ | --- | 30 | --- | nm | IF=20mA |
| Forward Voltage | VF | 2.00 | 2.20 | 2.80 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
- Luminous Intensity Measurement allowance is ± 10%.
- θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
- The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

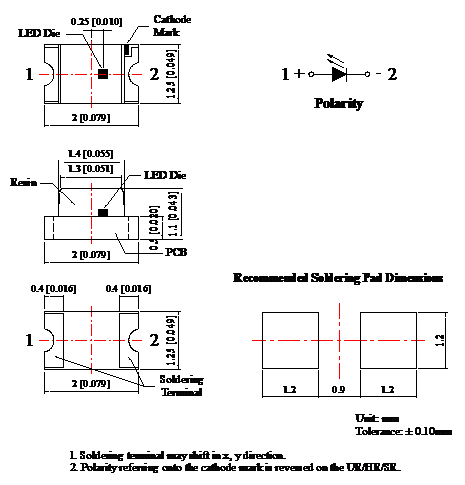

0402 SMD LED Package Dimension:
