1W High Power Purple LED

Features:

High Power Led Chip 5W Warm White (3000K-3500K / Input 600mA-700mA / DC 6V-7V / 5 Watt) Super Bright Intensity SMD COB

1. High power LED type.
2. Small package with high efficiency.
3. High flux output and high luminance.
4. Instant light (less than 100ns).
5. Very long operating life (up to100k hours).
6. Low voltage DC operated.
7. Designed for high current operation.
8. Low thermal resistance.
9. Compatible with automatic placement equipment.
10. Wide viewing angle: 130°.
11. High reliable.
12. The product itself will remain within RoHS compliant Version

Descriptions:

1. The HP10UVC series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT LED ideal for light pipe application.
2. This package LEDs are designed for high current operation and high flux output application. But the package’s design features better thermal management characteristics than other LED solutions.

Applications:

1. Counterfeit bill detection.
2. Sterilization.
3. Medical instrument.
4. Industrial use.
5. Photo catalyst excitation.
6. Phosphor excitation.
7. Sensor.
8. QA equipment.

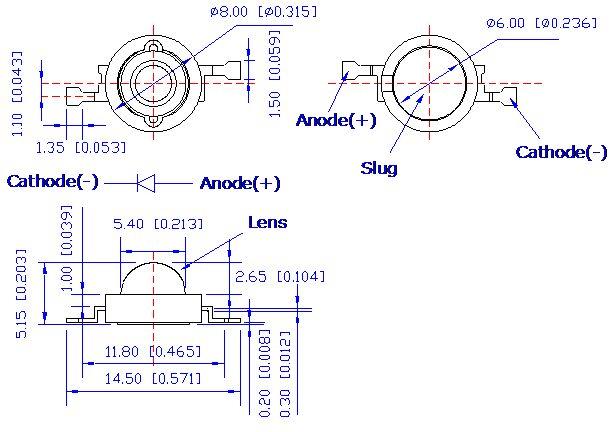

Package Dimension:

• Typical Electrical / Optical Characteristics Curves

• (25℃ Ambient Temperature Unless Otherwise Noted)

  CIE Chromaticity Diagram:

• Hyper Red:

• Pure Green:Blue:
•
• Reliability Test Items And Conditions (Per Chip):

• The reliability of products shall be satisfied with items listed below:

  Confidence level: 90%.

  LTPD: 10%.

  1) Test Items and Results:

  No.	Test Item	Test Hours/Cycles	Test Conditions	Sample Size	Ac/Re
  1	Resistance to Soldering Heat	6 Min	Tsld=260±5℃, Min. 5sec	25pcs	0/1
  2	Thermal Shock	300 Cycles	H: +100℃ 5min ∫ 10 sec L: -10℃ 5min	25pcs	0/1
  3	Temperature Cycle	300 Cycles	H: +100℃ 15min ∫ 5min L: -40℃ 15min	25pcs	0/1
  4	High Temperature Storage	1000Hrs.	Temp: 100℃	25pcs	0/1
  5	DC Operating Life	1000Hrs.	IF=20mA	25pcs	0/1
  6	Low Temperature Storage	1000Hrs.	Temp: -40℃	25pcs	0/1
  7	High Temperature/ High Humidity	1000Hrs.	85℃/85%RH	25pcs	0/1



  2) Criteria for Judging the Damage:

  Item	Symbol	Test Conditions	Criteria for Judgment
  			Min	Max
  Forward Voltage	VF	IF=20mA	---	F.V.*)×1.1
  Reverse Current	IR	VR=5V	---	F.V.*)×2.0
  Luminous Intensity	IV	IF=20mA	F.V.*)×0.7	---











• Reel Dimensions:

• Carrier Tape Dimensions:

  Loaded quantity 2000PCS per reel.
