1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear
1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear
- Features:
1. Very long operating life (up to100k hours).
2. Available in white, green, blue, red, yellow.
3. More energy efficient than incandescent and most halogen lamps.
4. Low voltage DC operated.
5. Cool beam, safe to the touch.
6. Instant light (less than 100 ns).
7. The product itself will remain within RoHS compliant Version.
- Applications:
1. Reading lights (car, bus, aircraft).
2. Portable (flashlight, bicycle).
3. Mini_accent/Uplighters/Downlighters/Orientation.
4. Bollards/Security/Garden.
5. Cove/Undershelf/Task.
6. Automotive rear combination lamps.
7. Traffic signaling/Beacons/ Rail crossing and Wayside.
8. Indoor/Outdoor Commercial and Residential Architectural.
9. Edge lit signs (Exit, point of sale).
10. LCD Backlights/Light Guides.
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Rating | Units |
| Forward Current | IF | 350 | mA |
| PeakPulseCurrent (tp≤100μs, Duty cycle=0.25) | I pulse | 500 | mA |
| Reverse Voltage | VR | 5 | V |
| LED Junction Temperature | Tj | 125 | ℃ |
| Operating Temperature Range | Topr | -40 to +80 | ℃ |
| Storage Temperature Range | Tstg | -40 to +100 | ℃ |
| Soldering Time at 260 ℃ (Max.) | Tsol | 5 | Seconds |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Viewing Angle [1] | 2θ1/2 | --- | 120 | -- | Deg | IF=350mA |
| Forward Voltage [2] | VF | 2.80 | 3.50 | 4.00 | V | IF=350mA |
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
| Peak Emission Wavelength | λp | --- | 462 | --- | nm | IF=350mA |
| Dominant Wavelength | λd | --- | 464 | --- | nm | IF =350mA |
| Spectrum Radiation Bandwidth | Δλ | --- | 20 | --- | nm | IF=350mA |
| Luminous Flux | Фv | 10 | 15 | --- | lm | IF=350mA |
Notes:
1. 2θ1/2 is the off axis angle from lamp centerline where the luminous intensity is 1/2 of the peak value. 2. Forward Voltage measurement tolerance: ±0.1V
Company introduction:

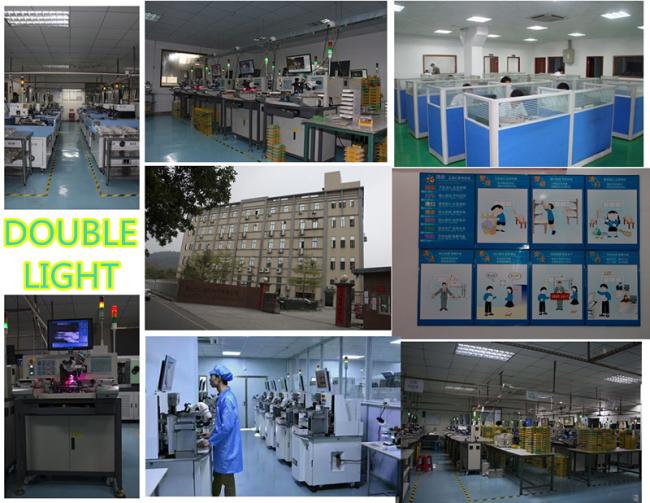

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

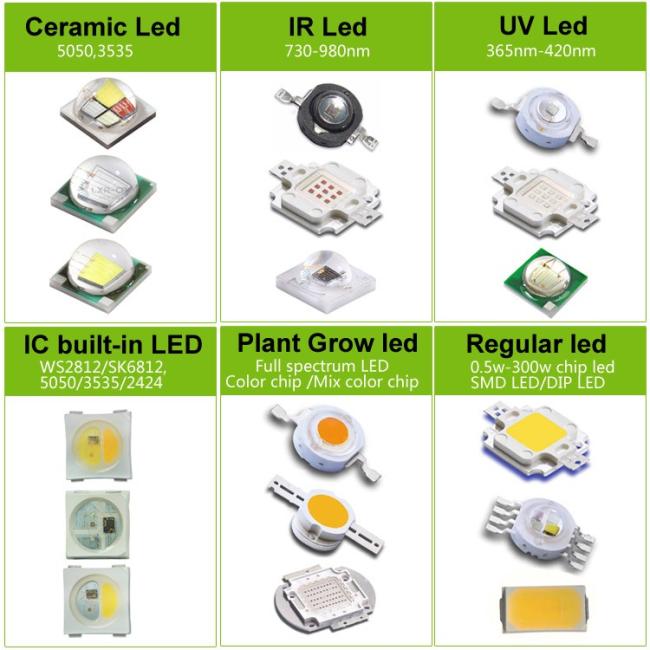

Other hot sell products
