0.8mm Height 0805 SMD chip led for Backlighting Blue 465-470nm water clear LED light components
0.8mm Height 0805 SMD chip led for Backlighting Blue 465-470nm water clear LED light components
Package Dimension:
| Part No. | Chip Material | Lens Color | Source Color |
| DL-PCB0805BC-1B120 | InGaN | Water Clear | Blue |
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max | Unit |
| Power Dissipation | PD | 95 | mW |
Peak Forward Current | IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Reverse Voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 400 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity * | IV | 80 | 150 | --- | mcd | IF=20mA (Note 1) |
| Viewing Angle * | 2θ1/2 | --- | 120 | --- | Deg | IF=20mA (Note 2) |
| Peak Emission Wavelength | λp | --- | 468 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 470 | --- | nm | IF=20mA (Note 3) |
| Spectral Line Half-Width | △λ | --- | 25 | --- | nm | IF=20mA |
| Forward Voltage | VF | 3.0 | 3.3 | --- | V | IF=20mA |
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
- Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
- Reliability Test Items and Conditions:
The reliability of products shall be satisfied with items listed below:
Confidence level: 90%.
LTPD: 10%.
1) Test Items and Results:
| No. | Test Item | Test Hours/Cycles | Test Conditions | Sample Size | Ac/Re |
| 1 | Resistance to Soldering Heat | 6 Min | Tsld=260±5℃, | 25pcs | 0/1 |
| 2 | Thermal Shock | 300 Cycles | H: +100℃ 5min ∫ 10 sec | 25pcs | 0/1 |
| 3 | Temperature Cycle | 300 Cycles | H: +100℃ 15min ∫ 5min | 25pcs | 0/1 |
| 4 | High Temperature Storage | 1000Hrs. | Temp: 100℃ | 25pcs | 0/1 |
| 5 | DC Operating Life | 1000Hrs. | IF=20mA | 25pcs | 0/1 |
| 6 | Low Temperature Storage | 1000Hrs. | Temp: -40℃ | 25pcs | 0/1 |
| 7 | High Temperature/ High Humidity | 1000Hrs. | 85℃/85%RH | 25pcs | 0/1 |
- Reel Dimensions
- :
![]()
Carrier Tape Dimensions:
Notes:
- Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
- θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
- The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Company introduction:

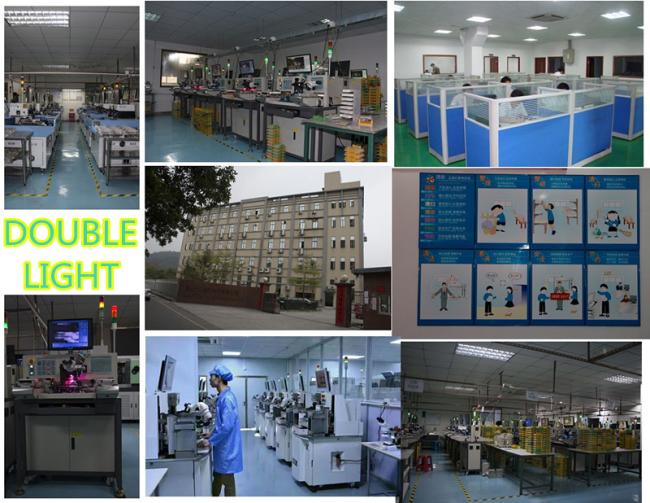

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
