PCB 1204 1206 RGB SMD LED With Right Lens , Full Color Chip LED epistar sanan chip 25mA
1.10mm Height RGB smd led 1210 Package Full-Color Chip LED for led display screen Flat backlight for LCD
| Part No. | Chip Material | Lens Color | Source Color |
|---|---|---|---|
| DL-PCB1204RGBC-A1 | R | Water Clear | Hyper Red |
| G | Pure Green | ||
| B | Blue |
- Features:
- Package in 8mm tape on 7″ diameter reel.
- Compatible with automatic placement equipment.
- Compatible with infrared and vapor phase reflow solder process.
- The product itself will remain within RoHS compliant Version.
- Descriptions:
- The 1204 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
- Besides, lightweight makes them ideal for miniature applications, etc.
- Applications:
- Automotive: Backlighting in dashboard and switch.
- Telecommunication: Indicator and backlighting in telephone and fax.
- Flat backlight for LCD, switch and symbol.
- General use.
1204 RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | IV | Hyper Red | 150 | 280 | --- | mcd | IF=20mA |
| Pure Green | 300 | 550 | --- | ||||
| Blue | 100 | 175 | --- | ||||
| Viewing Angle | 2θ1/2 | Hyper Red | --- | 120 | --- | Deg | IF=20mA |
| Pure Green | --- | 120 | --- | ||||
| Blue | --- | 120 | --- | ||||
| Peak Emission Wavelength | λp | Hyper Red | --- | 640 | --- | nm | IF=20mA |
| Pure Green | --- | 518 | --- | ||||
| Blue | --- | 468 | --- | ||||
| Dominant Wavelength | λd | Hyper Red | --- | 630 | --- | nm | IF=20mA |
| Pure Green | --- | 525 | --- | ||||
| Blue | --- | 470 | --- | ||||
| Spectral Line Half-Width | △λ | Hyper Red | --- | 20 | --- | nm | IF=20mA |
| Pure Green | --- | 35 | --- | ||||
| Blue | --- | 25 | --- | ||||
| Forward Voltage | VF | Hyper Red | 1.80 | 2.00 | 2.40 | V | IF=20mA |
| Pure Green | 3.0 | 3.30 | 3.80 | ||||
| Blue | 3.0 | 3.30 | 3.80 | ||||
| Reverse Current | IR | Hyper Red | --- | --- | 10 | µA | VR=5V |
| Pure Green | 50 | ||||||
| Blue | 50 |
Notes:
- Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
- θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
- The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

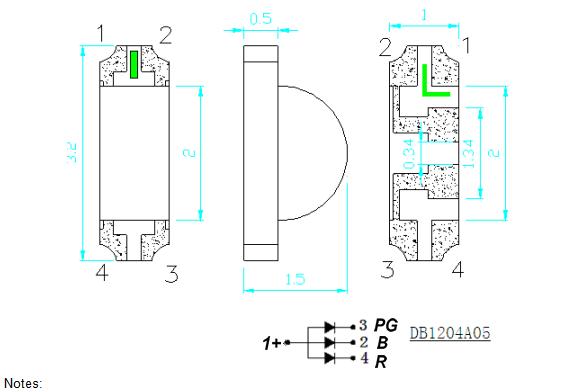

1204 RGB SMD LEDs Package Dimension:
