0.8mm Height 0807 RGB SMD LED Full Color Blinking Chip 4 Pins Optical indicator With IC Inside
0.8mm Height 0807 Size Full-Color Blinking Chip LEDs RGB Flashing smd led with 4 pins with IC inside
- Features:
- Package in 8mm tape on 7’’diameter reel.
- White package.
- Optical indicator.
- Colorless clear window.
- Ideal for backlight and light pipe application.
- Inter reflector.
- Wide viewing angle.
- Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
- Compatible with automatic placement equipment.
- Available on tape and reel (12mm Tape).
- The product itself will remain within RoHS compliant Version.
- Descriptions:
- The SMD 0807 Blinking RGB is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
- Applications:
- Automotive: Backlight in dashboards and switches.
- Telecommunication: Indicator and backlight in telephone and fax.
- Indicator and backlight for audio and video equipment.
- Indicator and backlight in office and family equipment.
- Flat backlight for LCD’s, switches and symbols.
- Light pipe application.
- General use.

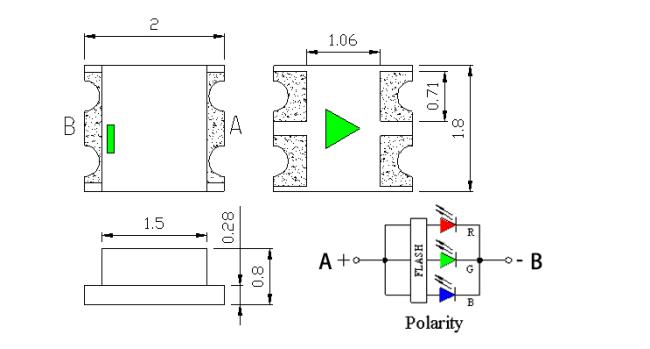

- Package Dimension:
- Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | IV | Hyper Red | 70 | 180 | --- | mcd |
IF=20mA |
| Pure Green | 300 | 500 | --- | ||||
| Blue | 120 | 210 | --- | ||||
| Viewing Angle | 2θ1/2 | Hyper Red | --- | 120 | --- | Deg |
IF=20mA |
| Pure Green | --- | 120 | --- | ||||
| Blue | --- | 120 | --- | ||||
| Peak Emission Wavelength | λp | Hyper Red | --- | 632 | --- | nm |
IF=20mA |
| Pure Green | --- | 520 | --- | ||||
| Blue | --- | 468 | --- | ||||
| Dominant Wavelength | λd | Hyper Red | --- | 624 | --- | nm |
IF=20mA |
| pure Green | --- | 525 | --- | ||||
| Blue | --- | 470 | --- | ||||
| Spectral Line Half-Width | △λ | Hyper Red | --- | 20 | --- | nm | IF=20mA |
| Pure Green | --- | 35 | --- | ||||
| Blue | --- | 25 | --- | ||||
| Forward Voltage | VF(Vdd) | Hyper Red | 3.0 | V | IF=20mA | ||
| Pure Green | |||||||
| Blue | |||||||
| Reverse Current | IR | Hyper Red | --- | --- | 10 | µA | VR=5V |
| Pure Green | 50 | ||||||
| Blue | 50 | ||||||
