5mm Standard T-1 3/4 Type Bi Color LED Hyper Red / Yellow Green LEDs For TV Set
Price:
Negotiated
MOQ:
1000pcs
Delivery Time:
10-15 working days after received your payment
Brand:
DOUBLE LIGHT
Product Description
5mm Standard T-1 3/4 Type Bi-Color Hyper Red & Yellow Green LEDs
Features:
- 5mm standard T-1 3/4 type.
- Bi-color: Hyper Red & Yellow Green.
- Uniform light output.
- Low power consumption.
- I.C. Compatible.
- Long life-solid state reliability.
- The product itself will remain within RoHS compliant Version.
Descriptions:
- The Hyper Red source color devices are made with AlGaInP on N-GaAs substrate Light Emitting Diode.
- The Pure Green source color devices are made with Gap on Sapphire substrate Light Emitting Diode.
Applications:
- TV set.
- Monitor.
- Telephone.
- Computer.
- Circuit board, etc

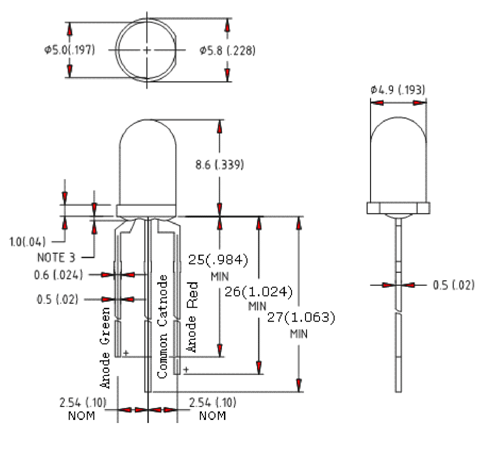

Package Dimension:
| Part No. | Chip Material | Lens Color | Source Color | |
| DL-509SRGCA-C | SR | AlGaInP | Water Clear | Hyper Red |
| G | GaP | Yellow Green | ||
Notes:
- All dimensions are in millimeters (inches).
- Tolerance is ± 0.25mm (.010″) unless otherwise noted.
- Protruded resin under flange is 1.00mm (.039″) max.
- Specifications are subject to change without notice.
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit | |
| Power Dissipation | Hyper Red | PD | 60 | mW |
| Yellow Green | 75 | |||
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA | |
| Forward Current | Hyper Red | IF | 25 | mA |
| Yellow Green | IF | 25 | mA | |
| Reverse Voltage | VR | 5 | V | |
|
Electrostatic Discharge (HBM) |
Hyper Red | ESD | 2000 | V |
| Yellow Green | 2000 | |||
| Operating Temperature Range | Topr | -40℃ to +85℃ | ||
| Storage Temperature Range | Tstg | -40℃ to +100℃ | ||
|
Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds | ||
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity* | IV | Hyper Red | 200 | 300 | --- | mcd | IF=20mA (Note 1) |
| Yellow Green | 80 | 160 | --- | ||||
| Viewing Angle* | 2θ1/2 | Hyper Red | --- | 30 | --- | Deg | IF=20mA (Note 2) |
| Yellow Green | --- | 30 | --- | ||||
| Peak Emission Wavelength | λp | Hyper Red | --- | 623 | --- | nm | IF=20mA |
| Yellow Green | --- | 570 | --- | ||||
| Dominant Wavelength | λd | Hyper Red | --- | 624 | --- | nm |
IF=20mA (Note 3) |
| Yellow Green | --- | 568 | --- | ||||
| Spectral Line Half-Width | △λ | Hyper Red | --- | 20 | --- | nm | IF=20mA |
| Yellow Green | --- | 35 | --- | ||||
| Forward Voltage | VF | Hyper Red | 1.80 | 2.20 | 2.80 | V | IF=20mA |
| Yellow Green | 1.80 | 2.30 | 2.80 | ||||
| Reverse Current | IR | Hyper Red | --- | --- | 10 | µA | VR=5V |
| Yellow Green | --- | --- | 10 |
Notes:
- Luminous Intensity Measurement allowance is ± 10%.
- θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
- The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
