Flat Top Tube Infrared Emitting Diode Peak Emission Wavelength 940nm 100mA Forward

Price Negotiable

Price: US$ 0.01-0.1per unit (Pieces)

MOQ: 1000 PCS

Delivery Time: 5-7 working days after received your payment

Brand: Double Light

Product Description

LED 940nm IR Infrared Emitting Diode Flat top Tube Water Clear Emitter Emission

Part No.	Chip Material	Lens Color	Source Color
DL-IR9087C	GaAlAs/GaAs	Water Clear	Infrared

Features:

Selected to specific on-line intensity and radiant intensity ranges.

Low cost, plastic side looking package.

Lens Appearance: Water Clear.

The product itself will remain within RoHS compliant Version.

Side looking package

Wide beam angle (±30°)

Capable of pulse operation

High output power

Low cost

Descriptions:

The IR9087C is a GaAlAs (GaAs) infrared emitting diode. The miniature side-facing device has a chip that emits radiation from the side of the water clear package.

IR730C is a super high output power GaAlAs infrared light emitting diode, mounted in a clear epoxy end looking package. It emits narrow band of radiation peaking at 940nm

Applications:

Mouse.

Optoelectronic switch.

Photo interrupter.

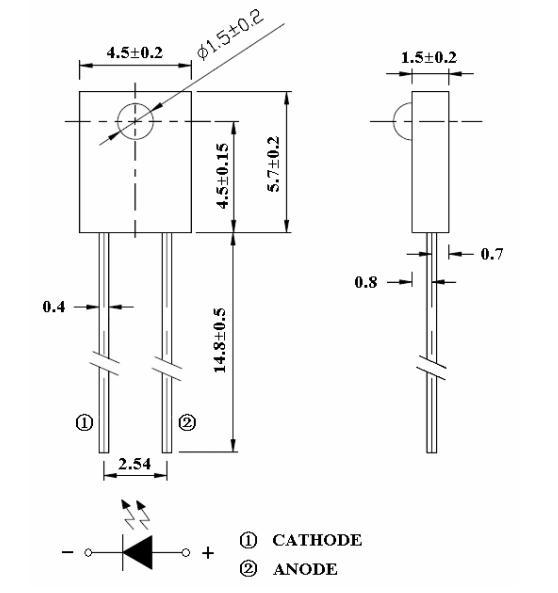

Package Dimension:

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25mm (.010″) unless otherwise specified.

3. Lead spacing is measured where the lead emerge from the package.

4. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	100	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1.00	A
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature [4mm (.157″) From Body]	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity	Ee	---	25	---	mW/sr	IF=20mA
Terminal Capacitance	Ct	--	20	--	pF	f=1MHz
Viewing Angle*	2θ1/2	---	30	---	Deg	(Note 1)
Peak Emission Wavelength	λp	---	940	---	nm	IF=20mA
Spectral Bandwidth	△λ	---	50	---	nm	IF=20mA
Forward Voltage	VF	---	1.20	1.40	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

1. θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

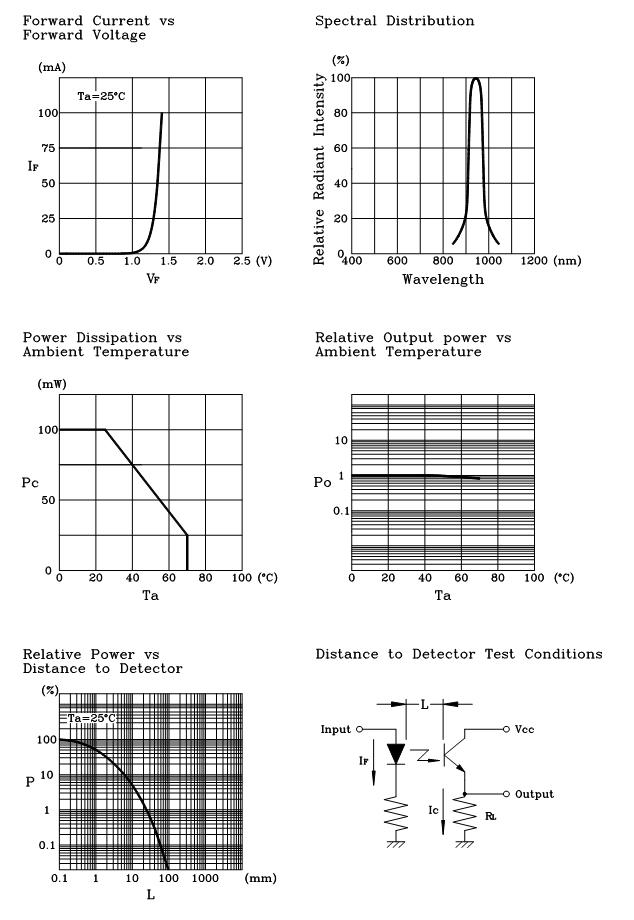

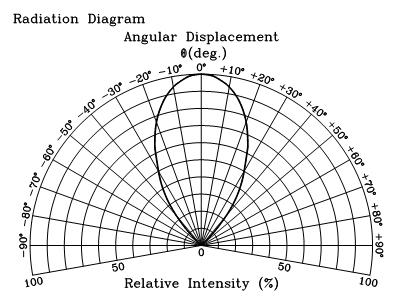

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Reliability Test Items And Conditions:

No.	Test Item	Test Hours/Cycles	Test Conditions	Sample Size	Ac/Re
1	Resistance to Soldering Heat	6 Min	Tsld=260±5℃, Min. 5sec	25pcs	0/1
2	Thermal Shock	300 Cycles	H: +100℃ 5min ∫ 10 sec L: -10℃ 5min	25pcs	0/1
3	Temperature Cycle	300 Cycles	H: +100℃ 15min ∫ 5min L: -40℃ 15min	25pcs	0/1
4	High Temperature Storage	1000Hrs.	Temp: 100℃	25pcs	0/1
5	Low Temperature Storage	1000Hrs.	Temp: -40℃	25pcs	0/1
6	High Temperature/ High Humidity	1000Hrs.	85℃/85%RH	25pcs	0/1
