940nm Phototransistor Infrared Emitting Diode Water Clear Emitter Emission
LED 940nm Phototransistor High photo sensitivity Water Clear Emitter Emission
Features:
- Fast response time l
- High photo sensitivity l
- Small junction capacitance
- Pb free l
- The product itself will remain with in RoHS compliant version.
Descriptions:
- The PTC730C-B is a photo transistor in miniature package which is molded in a water clear plastic with spherical top view lens.The device is spectrally to infrared emitting diode.
Applications:
- Automatic door sensor.
- Infrared applied system.
- Counters and sorters.
- Encoders.
- Optoelectronic switch.
- Video camera, tape and card readers.
- Position sensors.
- Copier.
- Game machine.
- Optical counters
- Optical detectors
- Flywheel counters
Rankings
| Parameter | Symbol | Min | Max | Unit | Test condition |
| 7-3 | Ic(on) | 0.53 | 1.19 | mA |
VCE=5V Ee=0.555mW/cm2 |
| 7-2 | 0.88 | 1.70 | |||
| 7-1 | 1.24 | 2.21 | |||
| 6-2 | 1.59 | 2.98 | |||
| 6-1 | 1.77 | 3.41 |

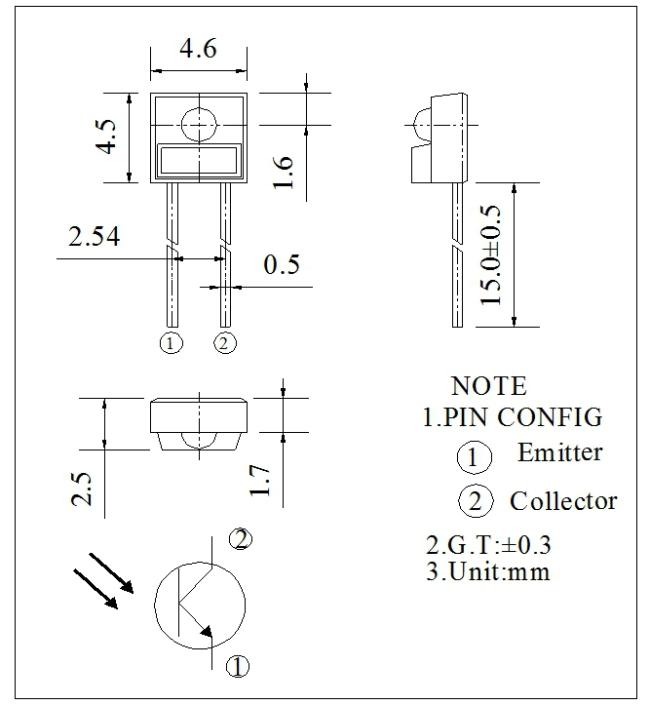

Package Dimension
| Part No. | Chip Material | Lens Color | Source Color |
| DL-PT9087C | Silicon | Water Clear | Phototransistor |
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25mm (0.01″) unless otherwise specified.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings (Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Collector-Emitter Voltage | VCEO | 30 | V |
| Emitter-Collector Voltage | VECO | 5 | V |
| Collector Power Dissipation | PD | 75 | mW |
| Collector Current | IC | 40 | mA |
| Operating Temperature | Topr | -25 ~ +65 | °C |
| Storage Temperature | Tstg | -40 ~ +85 | °C |
| Soldering Temperature *2 | Tsol | 260 | °C |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Collector-Emitter Breakdown Voltage | BVCEO | 30 | --- | --- | V |
IC=100μA, Ee=0mW/cm² |
| Emitter-Collector Breakdown Voltage | BVECO | 5 | --- | --- | V |
IE=100μA, Ee=0mW/cm² |
| Collector-Emitter Saturation Voltage | VCE(SAT) | --- | --- | 0.40 | V |
IC=0.70mA, Ee=1mW/cm2 |
| Collector Dark Current | ICEO | --- | --- | 100 | nA |
Ee=0mW/cm², VCE=20V |
| On-State Collector Current | IC(ON) | 0.53 | ---- | 3.41 | mA |
VCE=5V Ee=0.555mW/cm2 |
| Optical Rise Time (10% to 90%) | TR | --- | 15 | --- | μs |
VCE=5V, IC=1mA, RL=1000Ω |
| Optical Fall Time (90% to 10%) | TF | --- | 15 | --- | ||
| Reception Angle | 2θ1/2 | --- | 30 | --- | Deg | |
| Wavelength Of Peak Sensitivity | λP | --- | 940 | --- | nm | |
| Rang Of Spectral Bandwidth | λ0.5 | 400 | --- | 1200 | nm |
*2. At the position of 2mm from the bottom face of resin package within 5 second.

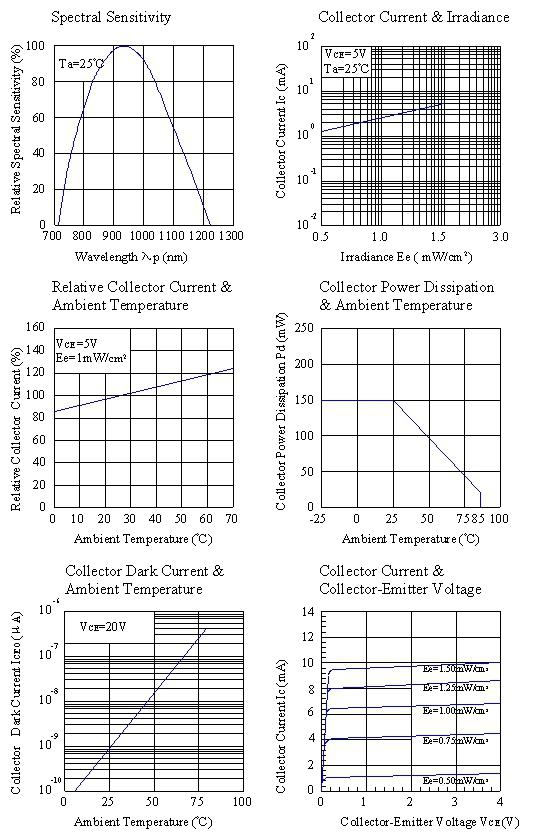

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
