GaAlAs 120Deg 1000mW 850nm 1W Infrared Emitting Diode
Price:
Negotiated
MOQ:
10,000pcs
Delivery Time:
5-7 working days after received your payment
Brand:
Double Light
Product Description
850nm Infrared Led 1W High Power Infrared LED Red Light Emitting Diode
Features:
- High reliability.
- High radiant intensity.
- Low forward voltage.
- Peak wavelength λp=850nm.
- The product itself will remain within RoHS compliant version.
Descriptions:
- The DL-HP10SIR Infrared Emitting Diode is a high intensity diode.
- The device is spectrally matched with phototransistor, photodiode and infrared receiver module.
Applications:
- Free air transmission system.
- Optoelectronic switch.
- Floppy disk drive.
- Infrared applied system.
- Smoke detector.
| Part No. | Chip Material | Lens Color | Source Color |
| DL-HP10SIRA-1SIR120 | GaAlAs | Water Clear | Infrared |
Notes:

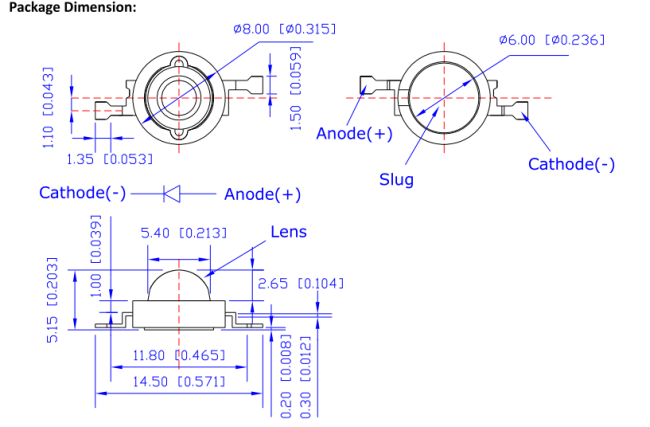

- All dimensions are in millimeters.
- Tolerance is ± 0.25 mm (.010″) unless otherwise specified.
- Specifications are subject to change without notice.
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 1000 | mW |
| Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 1.00 | A |
| Forward Current | IF | 350 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -10℃ to +70℃ | |
| Storage Temperature Range | Tstg | -20℃ to +80℃ | |
| Soldering Temperature | Tsol | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Radiant Intensity | Ie | 110 | 180 | ---- | mW/Sr | IF=350mA |
| Viewing Angle * | 2θ1/2 | ---- | 120 | ---- | Deg | (Note 1) |
| Peak Emission Wavelength | λp | ---- | 850 | ---- | nm | IF=350mA |
| Spectral Bandwidth | △λ | ---- | 45 | ---- | nm | IF=350mA |
| Forward Voltage | VF | 1.30 | 1.50 | 1.80 | V | IF =350mA |
| Reverse Current | IR | ---- | ---- | 50 | µA | V R =5V |

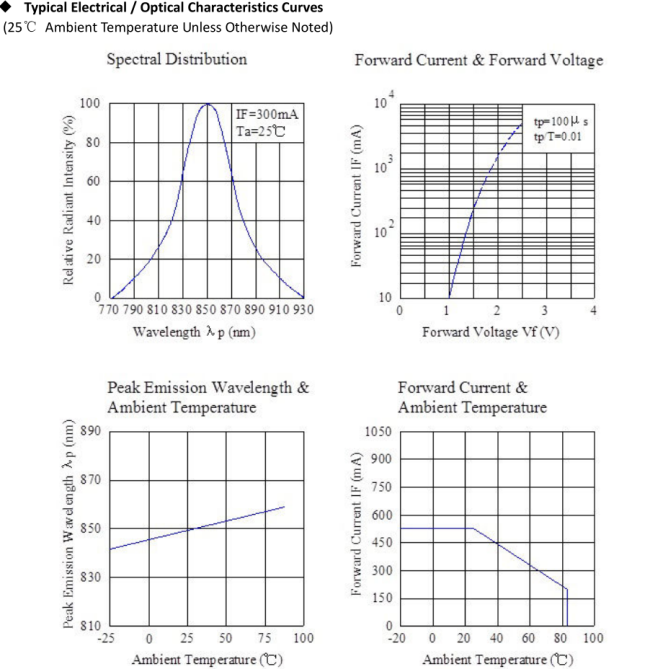

Notes:
- θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
