3.00mm Round Type Housing LED Lamps Blue&Super Red bi color led
3.00mm Round Type Housing LED Lamps Blue Super Red bi color led
Features:
1. Low Power consumption.
2. High efficiency and low cost.
3. Chip material: InGaN& GaAlAs
4. Emitted color : Blue& Red
5. Good control and free combinations on the colors of LED lamps.
6. Good lock and easy to assembly.
7. Stackable and easy to assembly.
8. Stackable vertically and easy to assembly.
9. Versatile mounting on P.C board or panel.
10. Stackable horizontally and easy to assembly.
11. The product itself will remain within RoHS compliant version.
Descriptions:
1. ARRAY=Plastic Holder + Combinations of Lamps.
2. The array will easily mount be applicable on any panel up to.
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
6. Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.
| Part No. | Chip Material | Lens Color | Source Color |
| DL-H30D-1BSRD | InGaN | Diffused | Blue |
| GaAlAs | Super Red |

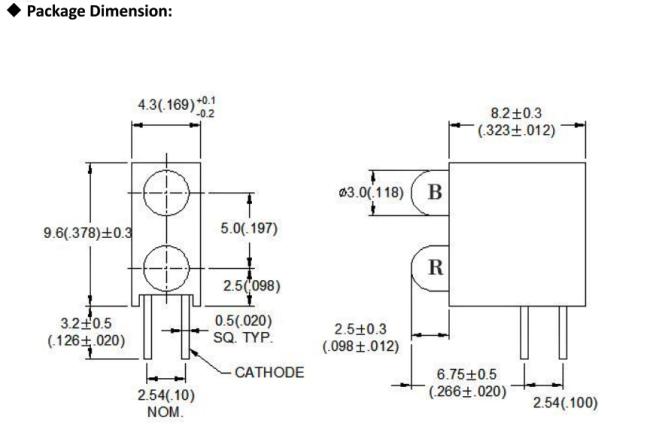

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010″) unless otherwise noted.
3. Protruded resin under flange is 1.00 mm (.039″) max.
4. Specifications are subject to change without notice.
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 75 | mW |
| Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | IV | Super Red | 150 | 300 | --- | mcd |
IF=20mA (Note 1) |
| Blue | 140 | 280 | --- | ||||
| Viewing Angle | 2θ1/2 | Super Red | --- | 30 | --- | Deg |
IF=20mA (Note 2) |
| Blue | --- | 30 | --- | ||||
| Peak Emission Wavelength | λp | Super Red | --- | 620 | --- | nm | Measurement @Peak |
| Blue | --- | 465 | --- | ||||
| Dominant Wavelength | λd | Super Red | --- | 630 | --- | nm |
IF=20mA (Note 3) |
| Blue | --- | 470 | --- | ||||
| Spectral Line Half-Width | △λ | Super Red | --- | 25 | --- | nm | |
| Blue | --- | 10 | --- | ||||
| Forward Voltage | VF | Super Red | 1.80 | 2.00 | 2.40 | V | IF=20mA |
| Blue | 2.80 | 3.20 | 4.00 | ||||
| Reverse Current | IR | Super Red | --- | --- | 10 | µA | VR=5V |
| Blue | --- | --- | 10 |
