JP CHINA MANUFACTURER LIQUID PARKING HEATER 5KW 12V 24V DIESEL GASOLINE FOR TRUCK CAMPER ENGINE PREHEATING
JP China Manufacturer Liquid Parking Heater 5KW 12V 24V Diesel Gasoline For Truck Camper Engine Preheating
It has three models: 12v diesel,24v diesel,12v gasoline, the price is the same.
Before delivery, please let me know which model do you need.
The engine coolant heater, circulation by the forced circulation pump in cars waterway, warm up the engine to reduce wear and achieve defrost, defrost, car heating purposes.
1. Compact, easy accessibility, and maintenance;
2. combustion, high thermal efficiency, fuel economy, emissions reduction, and environmental protection;
3. Avoid cold start, reduce engine wear;
4. reliable, fast heating, energy conservation;
suitable for trucks, construction vehicles and special vehicles and car preheat cold start defrosting, heating

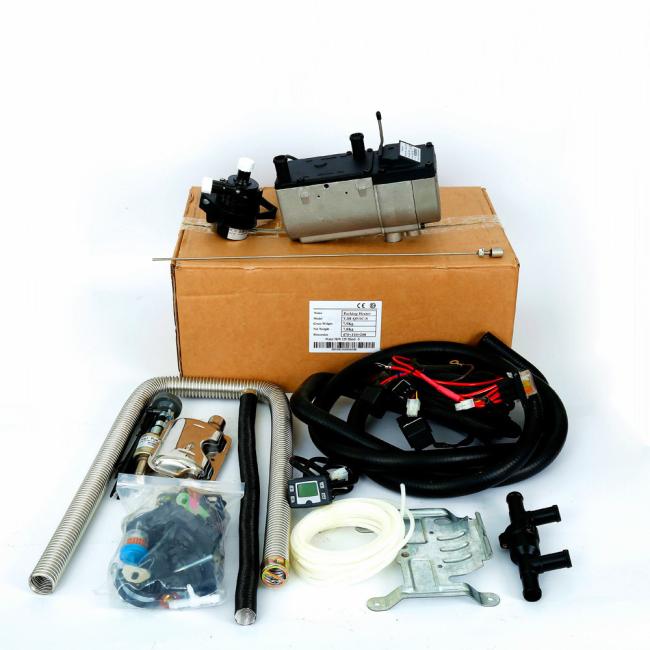

| No. | Name | Specification | Quantity |
| 1 | Heater | YJH-Q5/1C-S | 1 |
| 2 | Timer | 1 | |
| 3 | Fuel pump | YB-Ⅰ-12V(24V) | 1 |
| 4 | Muffler | XYQ-Ⅰ | 1 |
| 5 | Wiring harness | 1 | |
| 6 | Water pump | 12V (24V) | 1 |
| 7 | Heater bracket | 1 | |
| 8 | rubber cushion | 4 | |
| 9 | Muffler bracket | 1 | |
| 10 | Air inlet pipe | Φ20.5/Φ24 L=900 | 1 |
| 11 | Exhaust pipe | Φ24/Φ29.5 L=1000 | 1 |
| 12 | Positive wire of power supply | 1 | |
| 13 | Fuse base | With cover | 1 |
| 14 | Fuse | QY169-5A | 1 |
| 15 | Fuse | 12V/20A(24V/15A) | 1 |
| 16 | Fuse | QY169-25A | 1 |
| 17 | Water pipe | Φ17/Φ27 L=2600 | 1 |
| 18 | Clip | 16-25 | 1 |
| 19 | Spring clip | Φ24×Φ27 | 10 |
| 20 | Oil pump clip | Φ32 | 1 |
| 21 | Oil pipe clip | 8-10 (9-11) | 12 |
| 22 | Exhaust pipe clip | Φ24-28 | 3 |
| 23 | Air inlet pipe fixing clip | Φ24 t=0.5 | 2 |
| 24 | Exhaust pipe fixing clip | Φ27 t=0.8 | 2 |
| 25 | Fuel pipe | GasolineΦ1.5×Φ4(DieselΦ2×Φ5) | 1 |
| 26 | Fuel pipe connector | Φ3.5/Φ9.5(Φ4.1/Φ10.5) | 6 |
| 27 | water pipe connector | Φ18 L=55 | 2 |
| 28 | Special water pipe connector | PPA +33 Φ20×Φ18 L=60 | 2 |
| 29 | Relay | 4141(only for 12V) | 1 |
| 30 | Filter | RYL-Ⅰ(only for diesel) | 1 |
| 31 | Bolt | M6×10 | 1 |
| 32 | Self drilling tapping screw | ST5.5×25 | 6 |
| 33 | Self drilling tapping screw | ST5.5×30 | 5 |
| 34 | Self tapping screw | ST3×20 | 1 |
| 35 | Self tapping screw | ST4×16 | 3 |
| 36 | Spring washer | Φ6 | 2 |
| 37 | Washer | Φ6/Φ12 | 2 |
| 38 | Nut | M6 | 1 |
| 39 | Fuel suction pipe | XYG-Ⅰ 3×400 | 1 |
| 40 | Plug | DJ7041A-2.8-21 | 1 |
| 41 | Nylon cable ties | 4×150 | 1 |
| 42 | Nylon cable ties | 4×200 | 1 |
| 43 | Instruction manual | 1 | |
| 44 | Reducing T | Φ6-Φ10/Φ10 | 1 |
| 45 | Oil pipe clip | 12-14 | 2 |
| 46 | Non-return valve | D18 | 1 |
| 47 | Transition elbow | 2 | |
| 48 | Fixing gear | 2 | |
| 49 | O-ring | 14.8×2.62 | 2 |
| 50 | Bolt | M6×95 | 1 |
