Pneumohydraulic Shock Impact Testing Equipment For Industrial with IEC Standard
Pneumohydraulic Shock Impact Testing Equipment For Industrial with IEC Standard

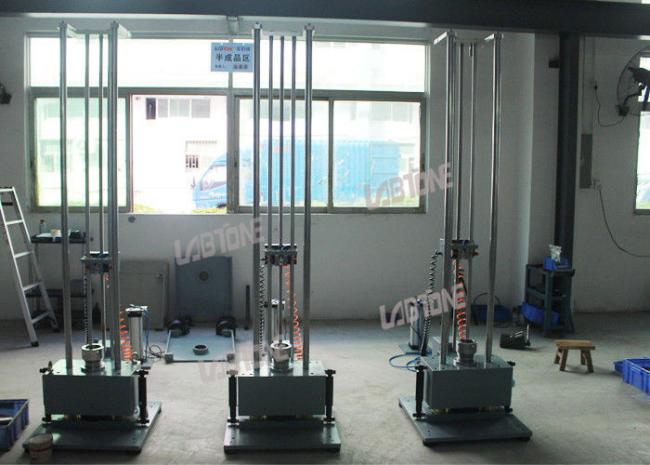

The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Specifications
| Model | HSKT5 | HSKT10 | HSKT10D |
| Table size (mm) | 150 x 150 | 200 x200 | 210 x 210 |
| Specimen max weight(kg) | 5 | 10 | 10 |
| Shock pulse | Half-sine | ||
| Acceleration range (m/s2) | 20----1500 | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
| Seismic base | Pneumatic springs device | ||
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | ||
Features
While a non-repetitive mechanical shock environment is encountered, find out the mechanical weakness and decay of specific functions. Basically simulate the consequence of random shock possibly encountered during transporting or operation process. While running a shock test, normally fix the specimen on fixture or testing table; wave model frequently selected per specification is the half-sine wave.
