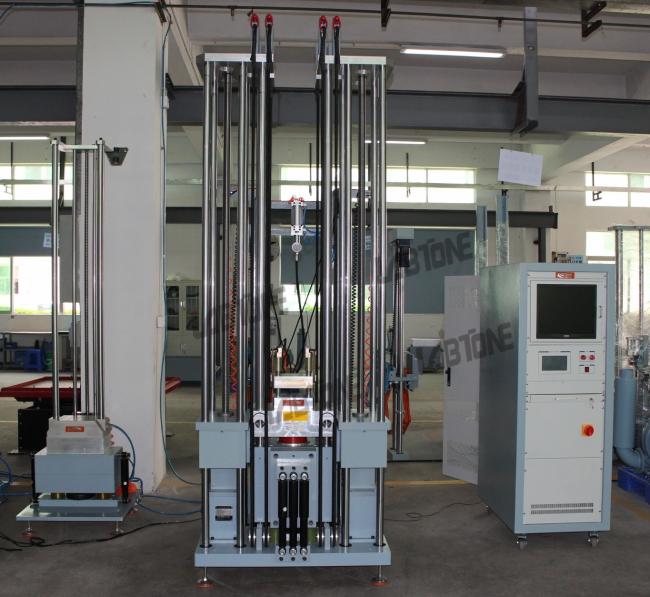

Shock Test Equipment with Table size 400 x 400 mm, Test for 50g 11ms, 150g 6ms
Shock Test Equipment with Table size 400 x 400 mm, Test for 50g 11ms, 150g 6ms
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.
Shock testing systems Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | |
| Machine Dimension(cm) | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | ||||||
| Machine Weight(Kg) | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility Requirements | 3-phase AC380V 50/60Hz 0.5~0.8MPa | ||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||
Features:
- Convenient touch screen operation.
- Complete safety protection system.
- Utilize pneumatically/hydraulically combined booster and braking system to prevent multiple impact
- With air spring shock absorber and hydraulic shock damping mechanism, there will be no impact on the surrounding and no foundation required.
we can provide the most advanced shock test system to meet your application requirements. Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices. By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,odorless,moisture corrosion, good transparency etc
