50kN Sine and Random Test Vibration Test System With Vertical And Horizontal Slip Table
50kN Sine and Random Test Vibration Test System With Vertical And Horizontal Slip Table
Technical Specifications:
| Model | EV250 |
| Vibration Generator | VG5000/50 |
| Frequency(Hz) | 2-2500 |
| Max Exiting Force(kg.f) | 5000 |
| Max. Displacement (mmp-p) | 50 |
| Max. Acceleration(g) | 100 |
| Max. Velocity(m/s) | 2.0 |
| Payload(kg) | 1000 |
| Armature Mass(kg) | 50 |
| Armature Diameter(mm) | φ450 |
| Cooling Method | Air Cooling |
| Shaker Weight(kg) | 3500 |
| Vibration Generator Dimension L*W*H(MM) | 1600*1120*1340 |
| Power Amplifier | Amp60k |
| Cooling Method | Air Cooling |
| Power Amplifier Weight(kg) | 800 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 |
| Utility Requirements | 3-phase AC380V ±10% 50Hz |
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.
- U-type spring, rollers and linear bearing for strong resistance of deflecting load
- Able to complete sine, random, impact environmental tests
- High reliability, especially suitable for long-time operation
- Quick self-diagnosis with safety interlock, high safety reliability;
- High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Key elemetns to evaluate and calculate the exciting force:
- Clear Testing Requirements
- Frequency (Frequency Range)
- Maximum Acceleration
- Maximum Displacement
- Maximum Velocity
- Specimen Mass and Fixation
Company Introduction:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) Wwarranty and are available directly from our factory in Dongguan, China. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having a qualified staffs of and experts to solve your problems.

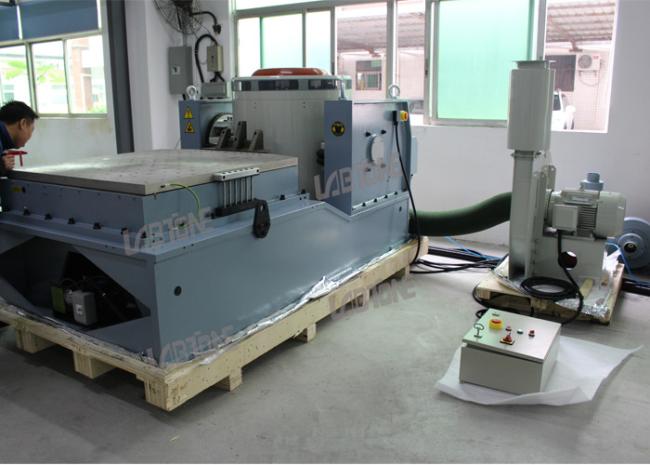

Detailed Pictures:
