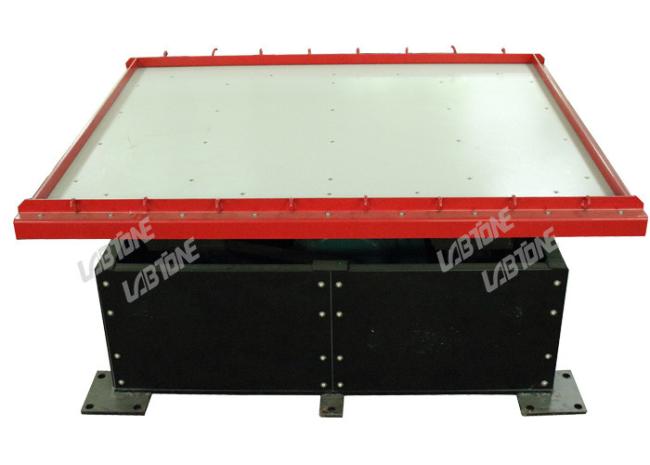

500kg Payload Rotary Vibration Test Table Meet ISTA 1A 2A ASTM D999 Standard
Rotary Vibration Tester With 500kg Payload Meet ISTA 1A 2A ASTM D999 Standard
Test Standard Compliance
- ISTA 1A 1B 1C 1D 1E 2A 2B
- ASTM D999
- ISO 2247
- Mil Std 810G
- TAPPI, JIS, UN, Fed Std 101
- Rotary (Synchronous) Motion (Standard)
- Digital LCD Speed Display
- Digital Timer w/Test Cycle Programming
- Infinitely Variable Frequency Adjustment throughout the 2-5 Hz Range
- Conveniently Mounted Standard Controls
- Operator Control Stand that can be moved easily
- Motor Controls Pre-Wired per customer specifications
- Rugged and Replaceable Decking for Excellent Wear Resistance and Low Cost Replacement
- Various Models for 100, 200, 500, 1000, 2000 kg Payload Capacity
YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes
Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
| Table Size(mm) | 1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz |
|||
Operating mode
Customer Services
Presales
- Technical consultation: test method, laboratory planning and suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning and test run.
- Calibration (when Third Party’s verification is required).
After-Sales
- Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
- Technical support: special paid services are provided according to customer’s needs.
Compnay Profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
