Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards
Vibration Test System Vibration Shaker Meet ISTA 3A 6AStandards Grms 0.53g 58.72mm
Technical Specifications:
| VG3200-76 Electro-dynamic Vibration Shaker | ||||
| Max. Sine force | 2000Kg.f peak | |||
| Max. Random force | 2000Kg.f rms | |||
| Max. Shock force | 4000Kg.f peak | |||
| Frequency range | 2 - 3000 Hz | |||
| Max. displacement | 76.2 mm p-p | |||
| Max. speed | 2m / s | |||
| Max. acceleration | 100G (980 m/s2) | |||
| First-order resonance frequency | 3200 Hz±5% | |||
| Effective load | 300 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Diameter of armature | Ф320 mm | |||
| Mass of armature | 25kg | |||
| Table screw | 16×M10 | |||
| Flux leakage | ＜10gauss | |||
| Allowable eccentric moment | 300N.m | |||
| Shaker dimensions | 1200 × 870 ×1130 mm | |||
| Shaker weight | About 1700Kg | |||
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
- Automotive parts and systems - qualification testing
- Electronic assembly, computer equipment testing
- Avionics and military hardware testing
- Satellite component testing
- Product and package testing
- General stress screening

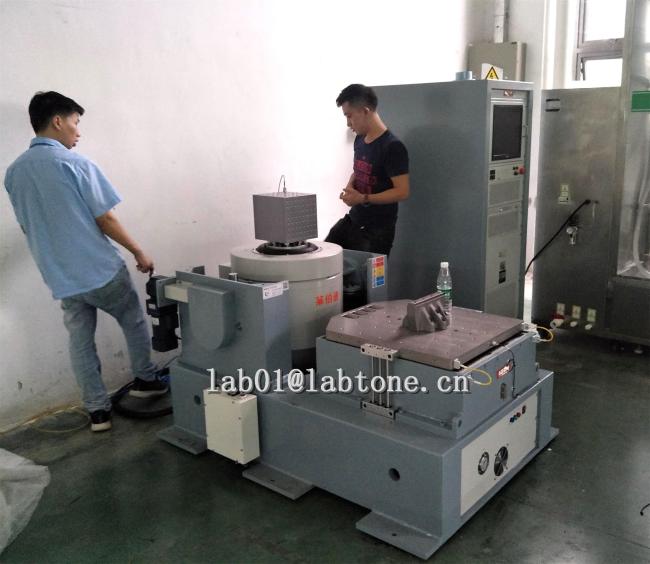

Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.
Customer Services
Presales:
- Technical consultation: test method, laboratory planning and suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales:
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning and test run.
- Calibration (when Third Party’s verification is required).
After-Sales:
- Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
- Technical support: special paid services are provided according to customer’s needs.
