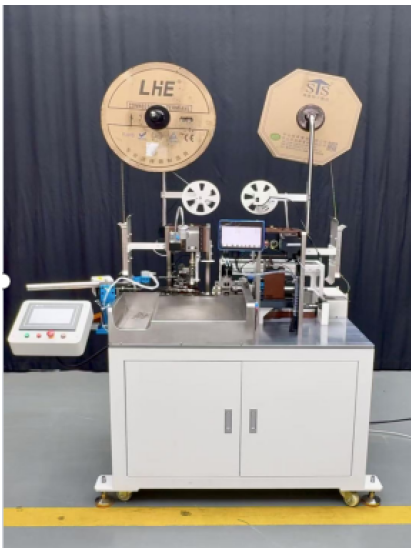

RS-01A Precision Double-Head Servo Terminal Crimping Machine

ONE. Machine Specifications:

Product Name: RS-01A Precision Dual-Head Servo Terminal Crimping Machine

Weight: 500kg

Storage Space: 3 square meters

Display: Chinese and English touchscreen LCD

Power Supply: AC220/50Hz

Power: 3000W

Working Air Pressure: 0.4mpa-0.8mpa (dry air)

Crimping Capacity: 3T

Function: Cuts, strips, and crimps wire to length with dual-end terminals

Applicable Wires: Electronic wire, high-temperature wire, halogen-free wire, Teflon wire, etc.

Production Capacity: 3200-3500 wires/hour per 100mm length

Applicable Wire: 32#-12#

Wire Cutting Length: Minimum total wire length for standard machine is 27mm

Stripping Length: Standard machine allows for a front strip within 15mm and a rear strip within 15mm

Cutting Accuracy: Within ±0.1 (0.1 + 0.005 * L) mm, where L = cutting length

Stripping Method: The forward and reverse screws independently complete the peeling (Xinjie servo motor)

Applicable Die: Universal for side-feed and back-feed applicators

Dimensions: Length 1260*Width 900*Height 1400MM (excluding raised mounting area)

TWO. Machine configuration

Wire feeding method: Xinjie servo motor, 4-wheel wire feeding

Translation mode: Xinjie servo motor for front and rear translation XY axes

Drive structure: Precision lead screw, Hiwin guide rails, synchronous belts, etc.

Terminal machine: Xinjie servo terminal machine

Detection device: Wire knot and missing detection, paper collection detection, air pressure detection

Auxiliary devices: Terminal cutting waste leakage device/rubber waste collection device, paper collection device, air pressure buffer tank

Optional equipment: Terminal pressure monitoring system

Machine video:
