High accuracy clear PVC tube cutting machine,Cut tube length:1-9999mm

• Machine for cutting soft tubes, wires, tapes, etc
• Cut tubes to certain length:1-9999MM
• Machine can work for 220V/110V,  English Panel, Operation Language and Manual.

Usage:

Cut Various materials, such as pv ribbons, nickel tabs, PVC tubes, shrink tubes, rubber silicone tubes, fiberglass tubes, wires, velcro,elastic, nickel strip, PV ribbons, etc.

If you are interested in the tube cutting machine, please confirm:

1. What do you cut?

2. The size?

Features

1.Full Automatic:  Automatic feeding and cutting. Set Length and QTY, machine works automatically.

2.User Friendly: English panel,Software and Manual ,easy operation.

3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed

4. High accuracy:Cut-length is accurate controlled by stepping motors

5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.

6. Automatic stop: It stops automatically if materials run out during operation.

7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.

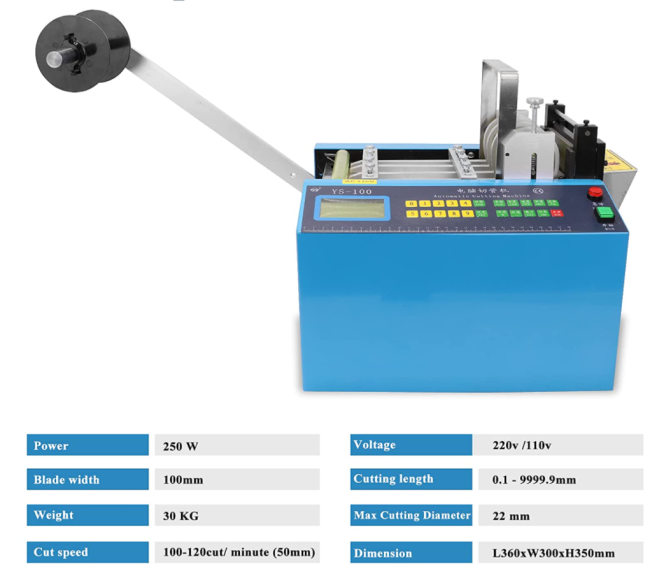

Parameters

Name:High accuracy clear PVC tube cutting machine,Cut tube length:1-9999mm

Model: YS-100

Power Supply:220V/110V  50HZ/60HZ

Blade length:100MM

Cut length:1-9999MM

Speed:100-120 cuts/minute

Weight:28KG

Size:L360xW320xH350mm

Language: English

Package: Carton box
