Manual Tape Resistance Diode Forming Machine Component Cutting Foot Forming Machine

Intro:

RS-906 is a manual type radial axial lead forming machine. Reistor forming machine works for axial type braid resistor, capacitor, inductor, diode and other electronic components foot cutting and forming into U or F type assembly. One machine can only form one type. Forming Size is adjustable.

Suitable:

• Cut and form taped Axial components lead, such as resistor, diode,etc.
• Cutting Only, Cutting And Forming
• For 0.35-0.8MM lead diameter. U or F shape forming.
• U and F shape can not shape same machine.
• Manual type axial lead forming machine

Parameter:

Features

1. This machine is suitable for axial taperesistors and electronic components forming and cutting feet;

2. Forming and cutting feet can be finished by one time.

3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

4. Forming span and feet length are adjustable;

5. Using tools imported from Japan, durable;

6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

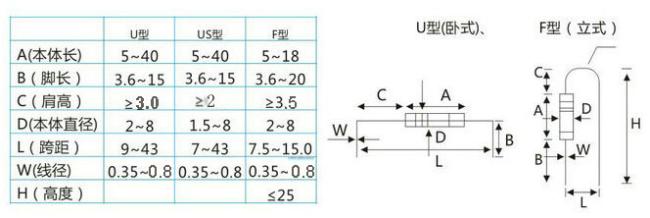

Forming size

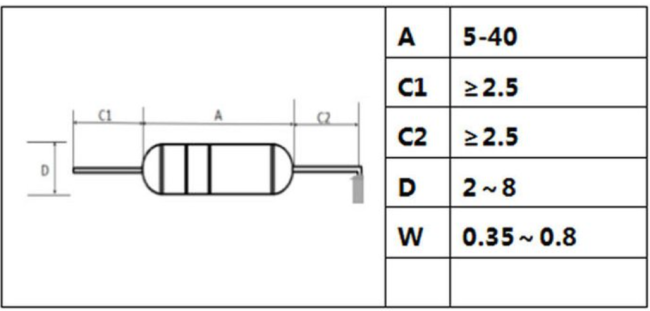

Other available forming shape

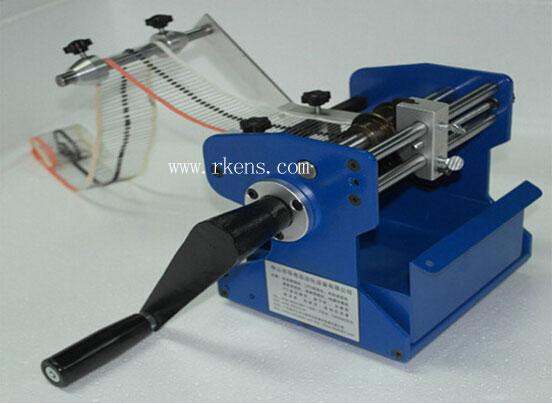

Machine picture
