220V/110V Automatic Shrink Film Tubing Cutting/Cutter Machine
220V/110V automatic shrink film tubing cutting/cutter machine
- Cut length:1-9999MM
- Type: Full Automatic Cutting Machine
- 220V/110V
- English language

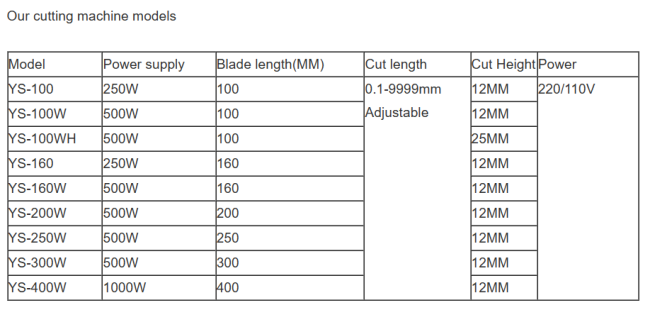

We have machine for cutting Max 500MM width materials.
YS-100 for Material less than 100MM width
YS-160W for material less than 160MM width
YS-200W for material less than 200MM width
YS-300W for material less than 300MM width
YS-500W for material less than 500MM width
Usage:
Cut Various materials, such as plastic/pvc film/sheet, flat ribbon cable, PVC tubes, shrink tubes, rubber silicone tubes, fiberglass tubes, wires, velcro,elastic, nickel strip, PV ribbons, etc.
Parameters
| Name | 220V/110V Automatic Shrink Film Tubing Cutting/Cutter Machine |
| Model | YS-100 |
| Power Supply | 220V/110V 50HZ/60HZ |
| Blade length | 100MM |
| Cut length | 0.1-9999MM |
| Speed | 100-120 cuts/minute |
| Weight | 28KG |
| Size | L360xW320xH350mm |
| Language | English |
Features
1.Full Automatic: Automatic feeding and cutting. Set Length and QTY, machine works automatically.
2.User Friendly: English panel,Software and Manual ,easy operation.
3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed
4. High accuracy:Cut-length is accurate controlled by stepping motors
5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
6. Automatic stop: It stops automatically if materials run out during operation.
7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.
Questions&Answers
1. Is it an automatic machine?
Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.
2. What about the language of the panel and user manual?
The panel, munual and software will be all in English. So people around the world can use it conveniently.
3. What about the warranty?
The warranty is 1years. We provide life-long service. Whenever you need help, just contact us.
4.What about the lead time?
We will machines in stock, we can ship the machine within 1-2 days after getting your payment.
Pictures of 220V/110V automatic shrink film tubing cutting/cutter machine
Metal holder for putting rolls
English Panel, Operation Language and Manual For easy operation
