RS-907AFK Axial Lead Former With Kinking For Taped & Loose Resistors

Intro:

RS-907A This component lead cutting and forming machine works for both taped and loose axial components. Such as bulk, belt resistor, diode and other axial components. The cutting and forming tool is customized according to customers' need. It can make F shape, U shape, F-K shape and U-K shape. Also it can make kink the lead.

Suitable:

• 1. Resistor forming machine is mainly used for axial type braid resistor, capacitor, inductor, diode and other electronic components foot cutting and forming into U or F type assembly.
• 2.The applicable is for roll,boxed materials.
• 3.Optional electric modules, consisting of electric resistor lead forming machine

Specification:

Features:

1. This machine is suitable for axial tape or loose resistors and electronic components forming and cutting feet;

2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;

3. Small size, easy operation.

4. Forming span and feet length are adjustable;

5. Imported material from Japan for cutter, durable

6.U type (horizontal)& F (vertical) two models can not use same machine.

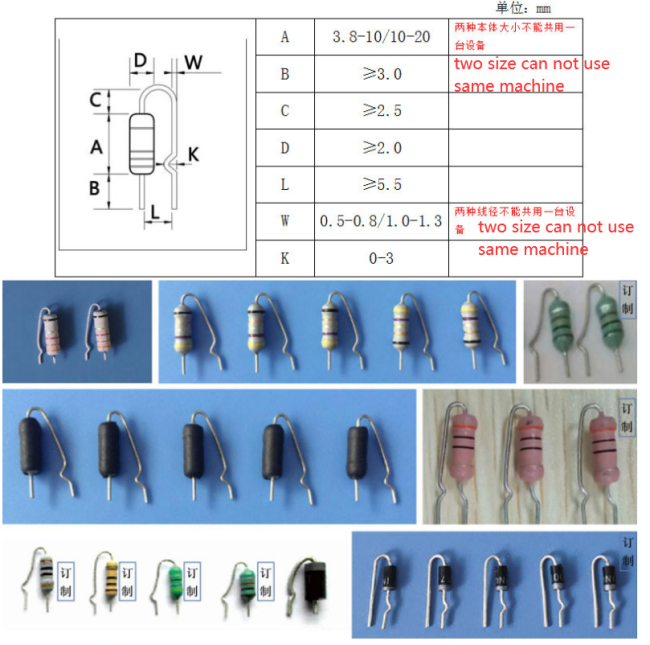

Available forming size

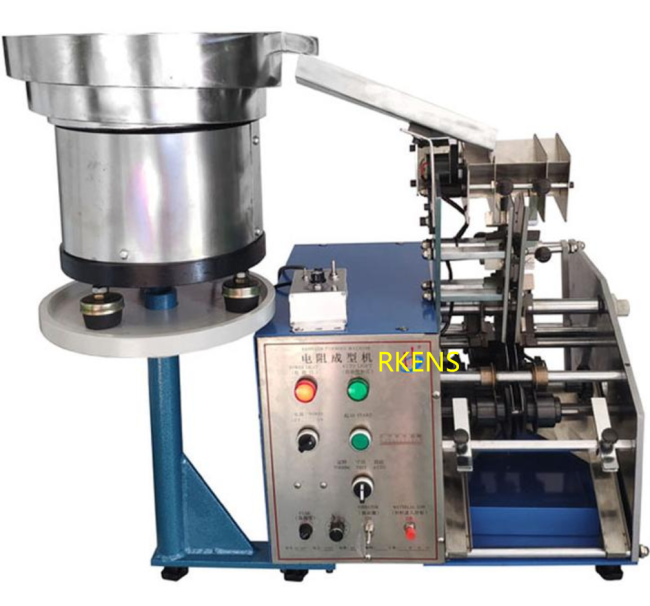

Machine picture
