RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp
Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature
Intro:
This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding. It is a semi-automatic type press machine, manually putting wires.
Strip and crimp, auto feeding ferrules.
Suitable:
| Model | RS-0525 Insulated Tubular Terminals Pressing Machine |
| Specification | 0.5mm -4mm2 insulated ferrules |
| Detect device | terminal supply detection,device lack |
| Drive Mode | Driving mode motor/imported ball screw control method |
| Control Mode | ouch screen and programmable controller,MOONS drive |
| Wire Clamping device | Wire clamping device motor drive, clamping force program control |
| Crimping Device | motor drive, crimping force program control |
| Storage capacity | 100 kinds of cable crimping data |
| Pneumatic device | Pneumatic device SMC solenoid valve, SMC cylinder |
| Power supply | 220V, 50HZ/60HZ |
| Gas source | 0.6~0.8Mpa (please use clean and dry air source) |
| Size | L450mm * W350MM * H425mm |
| Weight | About 68KG |
Features:
1. Enclosed design of the whole machine, safe and reliable operation;
2. Touch screen operation, electric adjustment of stripping depth and length, setting parameters save;

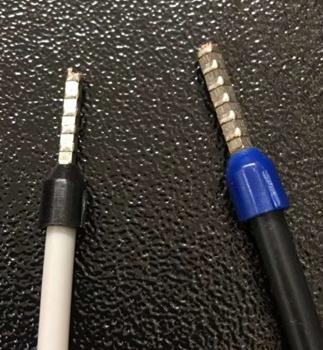

3. Automatic terminal supply, electronic four-side crimping (square), no need to replace crimping die
4 , Quick and automatic trigger, fast and convenient;
5. Semi-automatic operation, manual pay-off;
6. Automatic induction, peeling, terminal threading, crimping terminal, automatic feeding.
