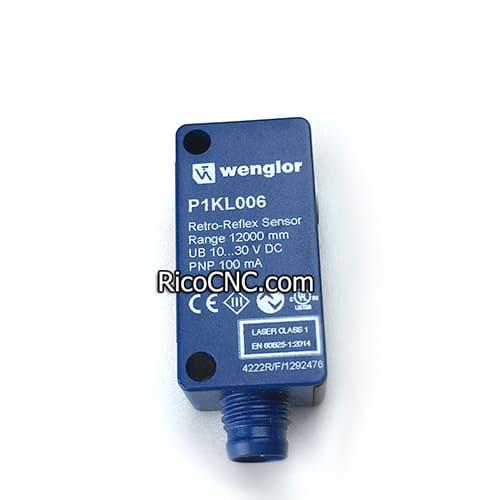

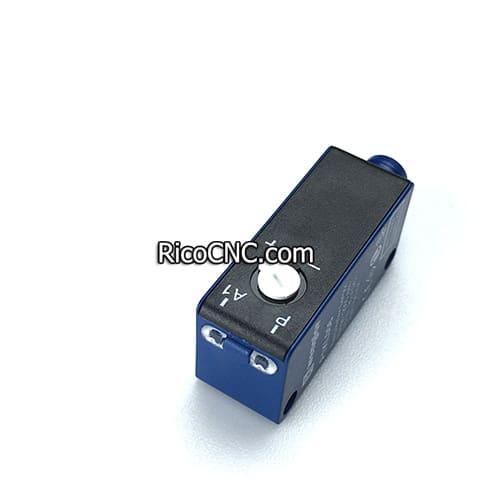

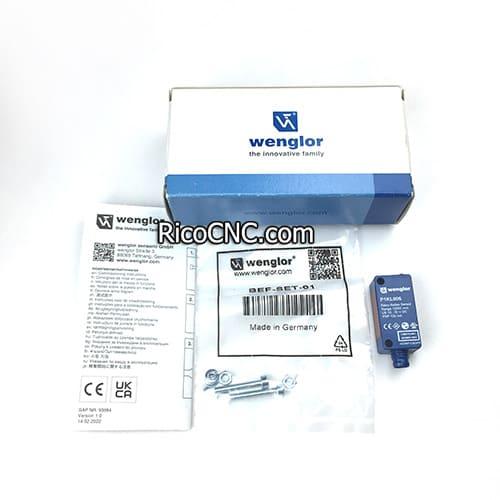

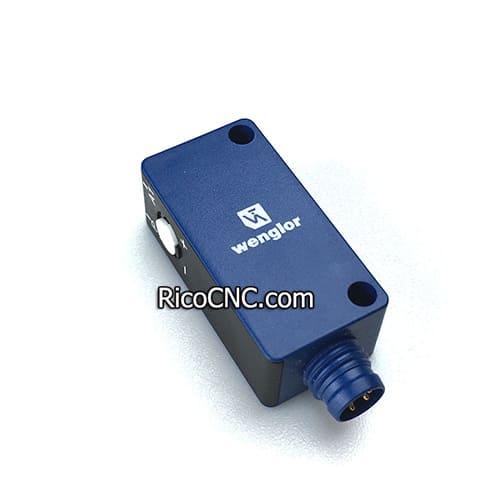

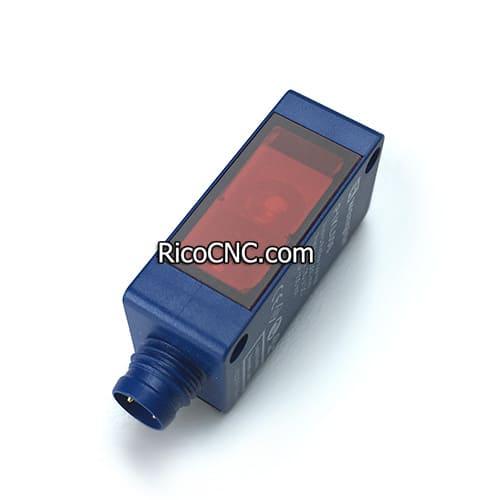

4008611043 4-008-61-1043 Wenglor P1KL006 Retro-Reflex Sensor Universal for HOMAG

4008611043 4-008-61-1043 Wenglor P1KL006 Retro-Reflex Sensor Universal for HOMAG

The retro-reflex sensor works with a fine laser beam and a reflector. The collimated laser beam of laser class 1 detects objects, for instance, when conducting installation, feed or presence controls, starting at a size of one millimeter over the entire range. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.

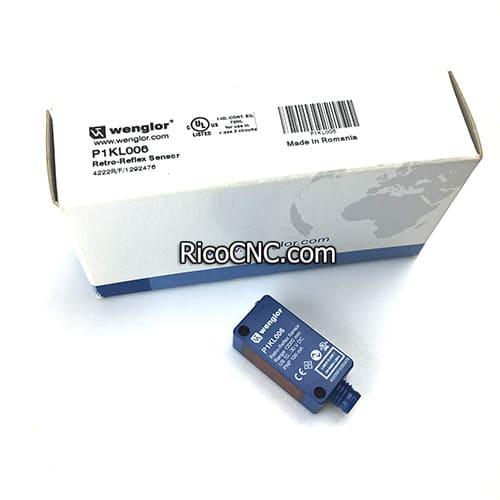

The old version is XK89PA7 Retro-Reflex Sensor Universal.

Product specifications:

• Description: Retro-Reflex Sensor Universal

• Range: 12000 mm

• Reference Reflector/Reflector Foil: RE6151BM

• Switching Hysteresis: < 15 %

• Light Source: Laser (red), collimated

• Wavelength: 680 nm

• Polarization Filter: yes

• Service Life (T = +25 C): 100000 h

• Laser Class (EN 60825-1): 1

• ax. Ambient Light: 10000 Lux

• Supply Voltage: 10...30 V DC

• Supply Voltage with IO-Link: 18...30 V DC

• Current Consumption (Ub = 24 V): < 15 mA

• Switching Frequency: 2000 Hz

• Switching frequency (speed mode): 4000 Hz

• Response Time: 0,25 ms

• Response time (speed mode): 0,125 ms

• Temperature Drift: < 10 %

• Temperature Range: -40...60 C

• Switching Output/Switching Current: 100 mA

• Residual Current Switching Output: < 50 A
