SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail
FC Fiber Optical Connector Housing Set For Optical Fiber Patch Cord Pigtail Production
Descriptions:
- The SC connector features a snap-in design with a push-pull latching mechanism that is easy to connect and disconnect.
- The SC connector features a 2.5mm Zirconia Ceramic ferrule and a push/pull coupling mechanism for a fast and reliable connection.
- A range of pigtail, simplex and duplex SC connectors are manufactured including Standard and Premium Low Loss Grades which are suitable for various applications. Low Loss grade (less than 0.2dB), Standard Grade (Less than 0.3dB)
Features:
- Use 250um ceramic ferrule (CCTC brand or other brand)
- For 0.9mm, 2mm, 3mm cable applications.
- Low insertion loss and back reflection capability.
- Precision anti rotation key for mechanical stability.
- Nickel plated metal body corrosion resistant.
Applications:
- Fiber optic patch cord and pigtail assembly.
- Telecommunication Network.
- CATV.
- FTTH.
- Testing Equipment.
- Local Area Network(LAN).

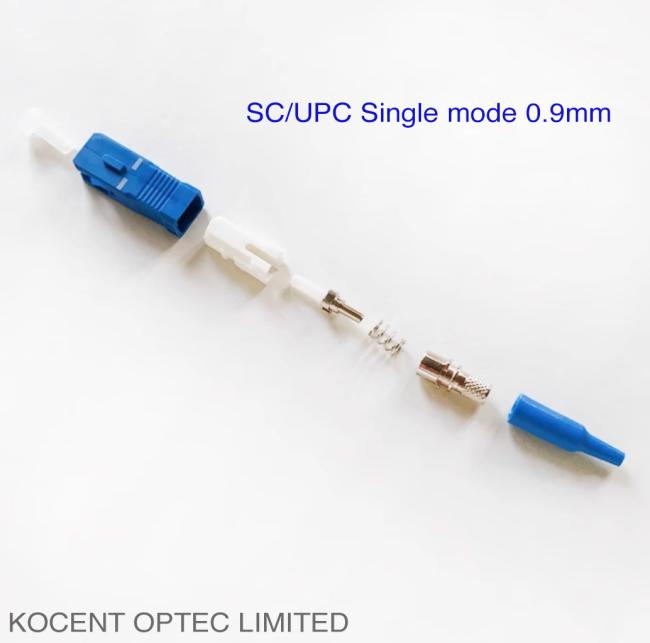

Product Pictures:
Details about Fiber Optic Connectors:
| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic to meet standard; amiability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, etc |
Specifications:
Item |
Single mode | Multimode | |||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | ||
| Insert Loss/connector (single Fiber) |
0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) | |||||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | |||
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) | |||||
| Pull Strength | ≥98N | ≥98N | |||||
Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, DIN, D4 and so on
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
