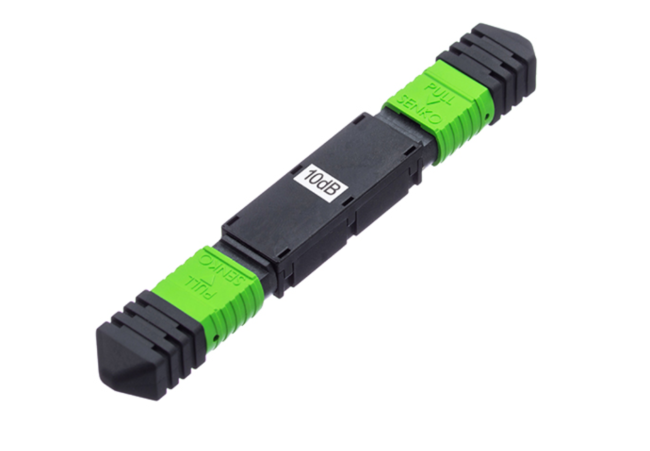

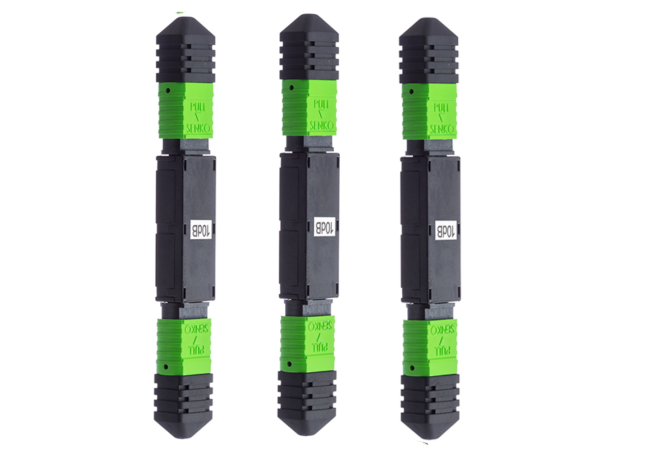

Fiber MTP Optical MPO Attenuator 5dB 7dB 10dB 8core 12core 16core 24core 36core Female To Male For Data Center
MTP/MPO attenuator loopback can achieve 40/100G parallel optical transmission system or other similar applications of a channel optical signal uniform attenuation; conventional attenuation methods require multiple independent attenuator to be applied to different optical signal channels, which is inefficient.
MTP/MPO Loopback Attenuator provides a fast and efficient solution to test the performance to transmit and the receiving sensitivity of the optical network device. It can obviously simplify the design of the network and provides more accurate and wider range (0-25dB) performance than similar products for 40G/100G optical link test applications.
The devices are available for 8-Fibers, 12-Fibers, 16-Fiber, 24-Fibers or 32-Fibers versions and customer specified pinout configurations, as well as multiple fiber types to match an existing system.
MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection.
Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time.

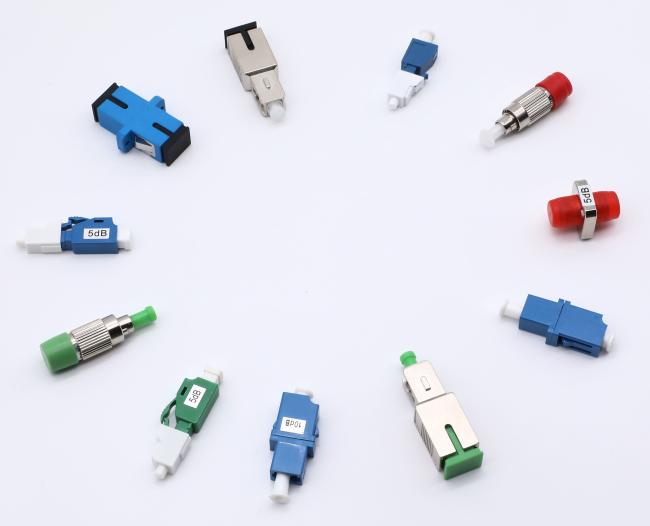

The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.
The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.
This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS.
| Item | Unit | Parameter |
|---|---|---|
| Operating Wavelength | nm | SM:1310/1550nm MM: 850 /1300nm |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Working Temperature | °C | -25°C~+75°C |
| Storage Temperature | °C | -40°C~+ 85°C |
- High Stability and High Durability
- Compact Housing Dimension
- QSFP Available
- RoHS Compliant
- Erbium Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
- Fiber optic communication systems.
- Fiber optic CATV
- Fiber optic test
- High precision.
- Good stability.
- Small size and bulk.
- Easy to operate.
- Data Center Infrastructure
- Storage Area Network and Fiber Channel
- Various 40G and 100Gbps Protocols
- Based on IEC/Telcordia Bell GR-326-Core Tested
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 25dB
- 1310nm, 1550nm and 1310/1550nm dual wave lengths
| Product | MPO/APC 12 core FM attenuator |
|---|---|
| Range | 0-30dB |
| Return loss | >60dB |
| Insertion loss | 1-5db≤±0.5dB 5-30db≤10% |
| Humidity | 95% RH |
| Wavelength parameters | SM 1310&1550nm |
| Durability | >1000 mating |
| Operate Temperature | -40C-80C |
| Storage Temperature | -55C-85C |
| Sleeve material | Ceramic |
