1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: 2~7 days after get payment

Brand: KCO

Product Description

1U Ultra High Density 144 Port Optica Fibra MPO MTP Rack Mount Patch Panel

Description:

MPO/MTP Rack Mount Patch Panel is design to fit with standard 19 inch of fiber optic distribution Frame.
This high capacity fiber optic distribution frame support fiber cable fast connection and distribution.
It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug.
It is an ideal equipment for supporting the fiber distribution in high-density capacity data center.
It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Can up load with 12 pcs of 12 cores MPO-LC cassette box.
Drawing type, easier to install and maintain.

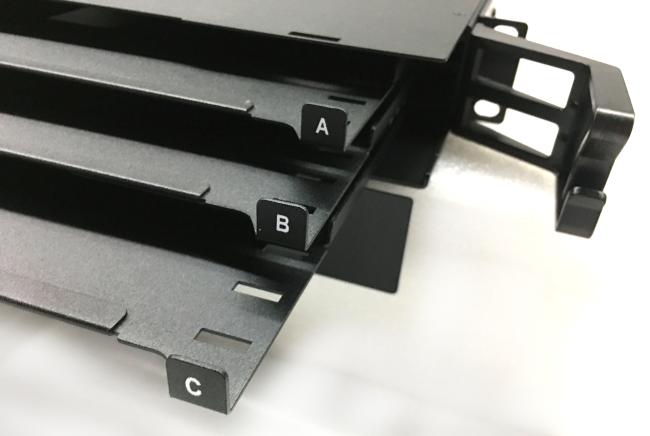

3 layers, high density, more save space.
Availabel in Single mode, Multimode OM3 OM4 and OM5.
Factory pre-install.
100% testing before shipping.
Available in Type A, Type B and Type C.
Default with Low Loss Standard (Elite Insertion Loss: less than 0.35dB).

Features:

Drawer with guild rail, easy to install and maintain.
19" standard size , easy install
Light weight, strong strength, good anti-shocking and dustproof
Well cable management, cable can be distinguished easily
Roomy space ensure fiber bent ratio
Adapter fence can be installed or uninstalled

Technical Data:

Connector type	Mini LC Duplex adapter
Capacity	144 cores
Material	Galvanized Steel Sheet or cold rolled steel
Performance Index	Max capacity reach to 144 cores Available adapter port: Defaul use Mini LC Duplex (optional: ST, FC, SC, MU, MTRJ, E2000, ...) With various panels to fit different adaptor interface

MPO/MTP Patch Panel Solution for Data Center:

Quick informations:

P/N:: KCO-RM-MPO-1U-144-LC-xx
Name:: 19'' MPO MTP Patch Panel
Capacity:: 144 core
Maximum module number:: 12pc
Optical port:: LC duplex, MPO
Cable length:: 0.3m
Patch panel size:: 480x245x1U(mm)
Color:: black (OEM other color)

Operation Conditions

Operating Temperature	-20℃ -- +60℃
Storage Temperature	-40℃ -- +70℃
Humidity	90% at 30℃
Air Pressure	70kPa – 106kPa

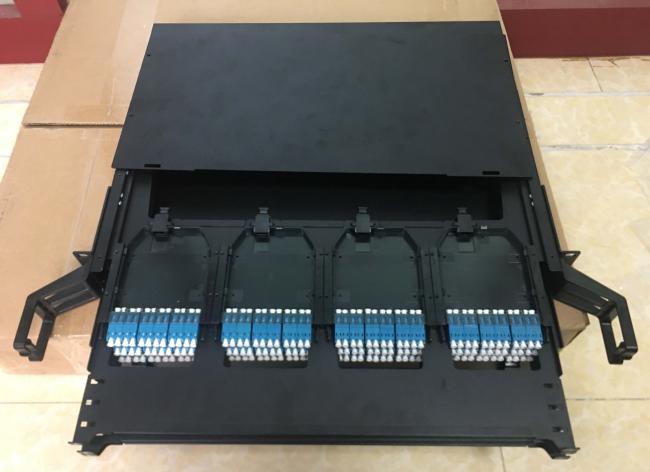

Product photo:

MTP/MPO Connector Specifications:

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8,12,24 etc.		8,12,24 etc.		8,12,24 etc.
Fiber Type	G652D,G657A1 etc.		G652D,G657A1 etc.		OM1,OM2,OM3 etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+80℃		-40℃~+80℃		-40℃~+80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times＜0.5 dB
Interchange	＜0.5 dB
Anti-tensile force	15kgf

Descriptions:

Fiber Capacity of panel	12-144 core(12 24 48 port usually)
Panel Connector	SC LC ST FC
Type	Fixed
Dimension	19'' 1U/2U/3U/4U...
Material	Cold Rolled Steel or Aluminum
Storage Temperature	-45~+65℃
Thickness	1.0 1.2 mm
Accessories	Cable ties, mounting ear screws, and spiral wrap tube
MPO type	SM: G652D, G657A1, G657A2 MM: OM1, OM2, OM3, OM4, OM5
Cover	LSZH
Length	0.3m, 0.5m
