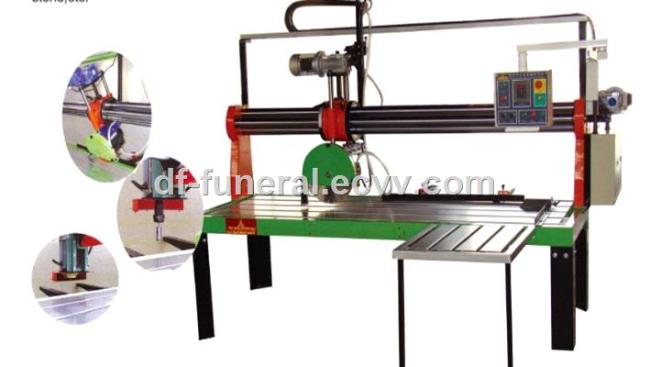

Stone 0-90 Belvel Angles All-purpose Cutting Machine
Specifications:
0-90 Belvel Angles All-purpose Cutting Machine
Main Parameter
| All-purpose Cutting Machine(JWQJ) | |||
| Model | JWQJ-2500A | JWQJ-3000A | JWQJ-4000A |
| Motor Power | 4.74KW | 4.74KW | 4.74KW |
| Working Table(length*width*heigh) | 2500*850*600MM | 3000*850*600MM | 4000*850*600MM |
| Spindle Speed | 2850rpm | 2850rpm | 2850rpm |
| Rotational angle of the motor | 0°~90° | 0°~90° | 0°~90° |
| Maximum Saw Diameter | 350mm | 350mm | 350mm |
| Maximum Cutting Length | 2100mm | 2600mm | 3100 |
Brief:
0-90 Belvel Angles All-purpose Cutting Machine
(1)Advanced technology and humanity design mixed together as a whole in this machine, which has novel and elegant exterior, reasonable structure, good steadness and powerful function, etc.
(2)Adopt autpmatic and intelligent machine control system, operated easily and laborsaving which has higher technical content, production efficiency, small consumption, lower stoppage rate and wear well. so it is the ideal equipment of the stone machinery industry.
(3)It applies to stone slabs of many specification: cut straight lines and oblique lines, grind bevel angles from 0° to 90°, make road surface stone, cut special shape or profile modeling products, drill and process blind way stone, etc.
