QT10-15 European Quality Full Automatic Concrete Block Making Machine

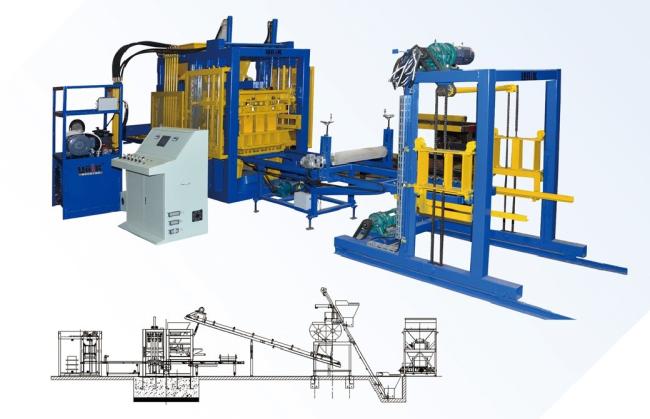

Fully-Automatic Hollow Concrete Block Making Machine QT10-15
Block Making Machine Price, Block Machine Price
Usage: for the mass production of all types of concrete blocks, pavers, curbstones etc..
Contact: Mobile/Whatsapp/Viber:0086-15880984810
Capacity:
| Block Size | pcs/pallet | pcs/8 hours |
| 400*200*200mm hollow blocks | 10pcs | 14400pcs |
| 100*200*60 I- paver | 36pcs | 41472pcs |
Specification:
| Dimension | 3700*2100*3090mm |
| Pallet Size | 1100*950*25~40mm |
| Vibration Frequency | 3800-4500 r/min |
| Hydraulic Pressure | 25 mpa |
| Vibration Force | 68 KN |
| Cycle time | 15-20s |
| Power | 45.38kW |
| Weight | 12800KGS |
Our advantages:
1.Unik Machine has a very compact structure, uses high special steel and advance heat treatment, leading to a long lifespan.
2.Simens PLC control system and branded touch screen ensures stable and reliable performance, also can be remotely operated and moninotored.
3.Uses Imported high-dynamic proportional valves, which is able to adjust the oil flow and pressure catering to all levels of working requirement, so as to buffer the hydraulic cylinder.
4 Utilizes SEW or Simens motor (Frequency-Controlled) to ensure a extended type high-efficient vibrotechnique, thus, the concrete product will be of high strength and high density.
5.Rwa material feeder is designed by multi-shaft at 360 degree feeding. The raw material can be distributed evenly with faster feeding, applicable for different types of blocks.
Our machine:
1.Which machine is best suited for me?
After you advise "How many blocks produced in a day? What is initial budget for a machine? " we are happy to provide the machine differently to cater specifically to meet your requirement.
2. What Raw Materials are needed to make blocks?
The raw materials required are cement, sand, stone chips and water.
3. Can I get installation and warranty?
When equipments arrive in your place, we will arrange our engineer to your country for installation and training your workers, and we promise one year guarantee
4. Do I need a machine for every type of brick or block that I make?
No. All of our machines can be fitted with any mold that was designed for that machine. That includes, paver molds, hollow block molds, solid block molds and all brick molds.
We will offer one mould for free as per one set machine, if you require other designs, we will prepare additional moulds.
For any info, please contact:
Email:hailleyfu@hotmail.com
Whatsapp/Viber:0086-15880984810
