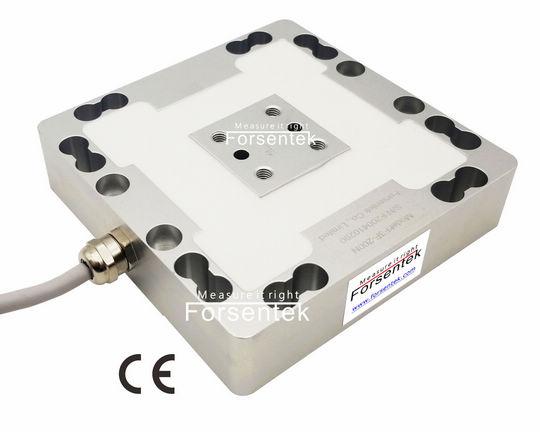

Low profile Triaxial Load Cell F3F is designed to measure force in Fx/Fy/Fz at the same time. Tri-axial force sensor F3F offers 0-20kg / 0-30kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg / 0-500kg rated measuring ranges for each axis to choose from,each channel is able to measure force in both tension and compression direction.Compact design makes 3-component load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find 3D force sensor F3F interchangeable with interface 3-axis force load cell 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Dimensions(in milimeter)
Specifications
| Rated Capacity |
200N / 45lb / 20kg |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element |
0-1kN: Aluminum |
| Cable | Ø6*3000mm 12-core shielded |
| Wiring code | 4-wire connection for each axis |
A 3-Axis Sensor is a force transducer that measures forces in Fx, Fy, Fz direction at the same time,each axis consists of a full wheatstone bridge to deliver mV/V output proportional to the applied load, a 3-channel load cell signal amplifier LC3A can be used to convert the mV signal into -5-5V, 0-10V, 4-20mA for easy signal processing. 3 axis load cell F3F can also be modified or customized as per client's request.
