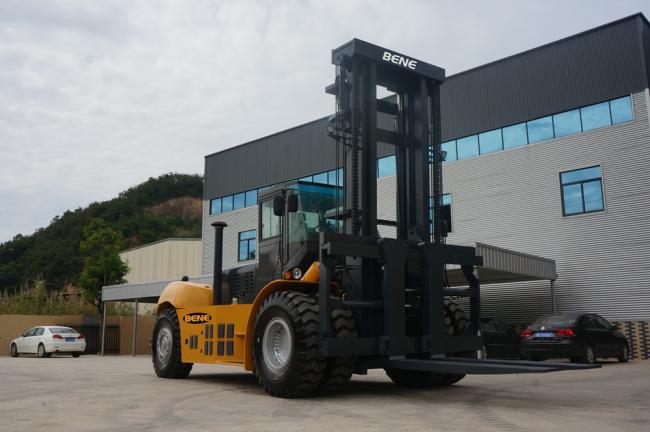

Chinese 35ton forklift truck CPCD350 VS kalmar 35ton hyster 35ton diesel forklift
35ton forklift truck FD350 with 35000kg load capacity 35ton forklift CPCD350 with ZF transmission
1.Adopt CUMINS diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption
2.High strength solid steel gantry fork fixed with fork with regulator.
3.Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4.Fitted with handy steer with maximum freedom, provides steering conveniences.
5.An ideal operation friendly in the engineering and industrial sectors.
6.Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
7.The gearbox and torque converter are of reliable quality and stable performance.
8.The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.
9.Brake system is famous brand product, with reliable brake performance.
| Item | Specification | Unit | |||
| General | 1 | Model | FD350 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 35000 | ||
| 4 | Load Center | mm | 1250 | ||
| Dimensions | 5 | Lift Height | mm | 4000 | |
| 6 | Fork Size(LxWxT) | mm | 2400×300×120 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 980/2500 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 9 | Fork Overhang | mm | 1220 | ||
| 10 | Length without forks | mm | 7150 | ||
| 11 | Overall Width | mm | 3370 | ||
| 12 | Mast Lowered Height | mm | 4200 | ||
| 13 | Overhead Guard Height | mm | 3690 | ||
| 14 | Outer turning Radius | mm | 6950 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 200 | ||
| 19 | service Weight | kg | 40000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×16.00-25-32PR | |
| 21 | Rear | 2×16.00-25-32PR | |||
| 22 | Tread | Front | mm | 2430 | |
| 23 | Rear | mm | 2240 | ||
| 24 | Wheelbase | mm | 5000 | ||
| 25 | Ground Clearance(Under mast) | mm | 360 | ||
| Power & Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
| 27 | Engine | Model | WP10G240 | ||
| 28 | Manufacture | WEICHAI | |||
| 29 | Rated Output | Kw | 178 | ||
| 30 | Rated Torque | N.m | 786 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 114/135 | ||
| 33 | Displacement | L | 8.3 | ||
| 34 | Transmission | Type | Fluid Torque Converter | ||
| 35 | StageFWD/RVS | 2/1 | |||
| 36 | Operating Pressute | Mpa | 21 | ||
