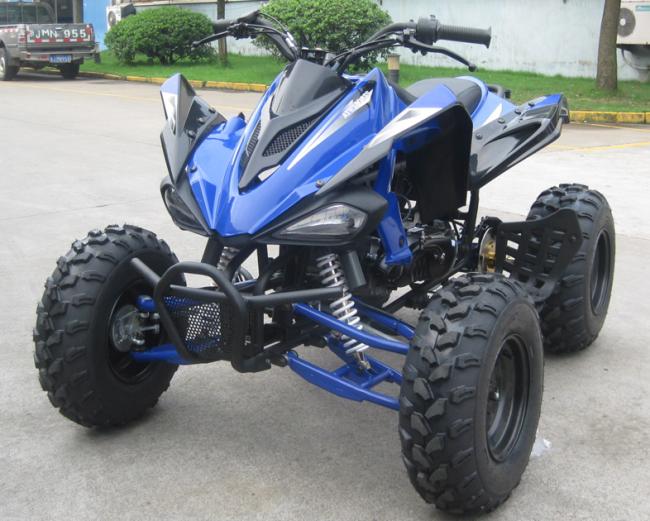

150cc Air Cooled Front Drum Brake Four Wheel Atv 8" Tire 7000r/Min
150CC,Air cooled,8" TIRE,FRONT DRUM BRAKE, REAR DISC BRAKE,FRONT AIR SHOCH
Model:
four wheel atv150-16
Product Description:
| Engine type | 150CC,4 STROCK,AIR COOLED,SINGLE CYLINDER,CVT) |
| Engine brand | JL |
| Displacement | 150CC |
| Cooling | AIR COOLED |
| Max horsepower | 5.5kW/7000(r/min) |
| Max torque | 10.5N•m/6000(r/min) |
| Bore*stroke | 57.4X57.8 (mm) |
| Max speed | 55㎞/h |
| Climbing ability | 35 |
| Ignition | C.D.I |
| Starting system | ELECTRIC+FOOT |
| Battery | 12V9Ah |
| Carburetor brand | KF(PZ30BL) |
| Engine oil | SAE-15W/40 |
| Gear oil | |
| CHASSIS ETC. | |
| Clutch | CVT |
| Transmission | 1-forward,1-neutral,1-reverse |
| Driveline | CHAIN |
| Driving wheel | , |
| Suspension,front/rear | FRONT DOUBLE A-ARM |
| Brakes,front/rear | FRONT DRUM/REAR DISC |
| Brake operation | FRONT:HANDLE/REAR:FOOT |
| Tires,front/rear | 19X7.0-8/18X9.50-8 |
| Fuel capacity/type | 4.5L |
| Weight,G.W./N.W. | 400.4LBS/343.2LBS |
| Max load | 330 LBS |
| DIMENSIONS | |
| Wheelbase | 1150mm |
| OA L*W*H | 1679X998X1094mm |
| Height to seat | 830mm |
| Min ground clearance | 110mm |
| Carton size | 64.9”x44”x33.8” |
| Shipping info | 42PCS/40HQ |
